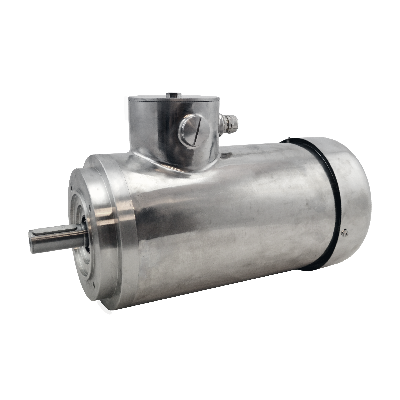

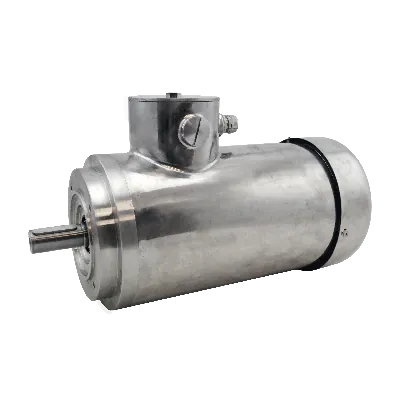

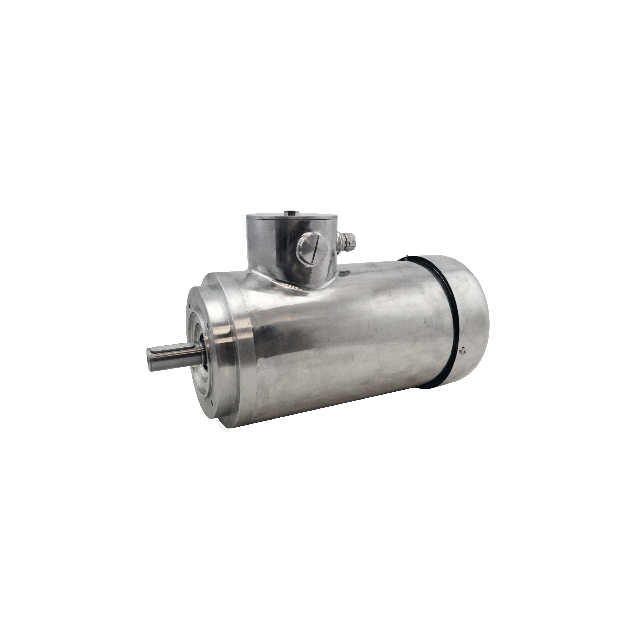

Marlin AC motor TEFC90S-6, 0.75kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC90S-6The Marlin TEFC90S-6 is a hygienic stainless steel AC induction motor, designed for demanding industrial environments requiring durability, washdown resistance, and high efficiency. With a rated power of 0.75 kW and a speed of 900 RPM, this 6-pole motor delivers 7.47 Nm of torque for reliable continuous-duty applications.
Built with a totally enclosed fan cooled (TEFC) design and IP66 protection, the motor is fully dust-tight and resistant to powerful water jets, making it ideal for food processing, pharmaceuticals, and outdoor installations.
The motor is mounted with a B14 flange (bolt circle diameter 115 mm) and a Ø24 mm stainless steel shaft, ensuring corrosion resistance and compatibility with hygienic machinery setups. It is certified to UL and cURus standards and meets IE3 high-efficiency class, supporting sustainable and energy-saving operations.
Made to order
Expected shipment:
More Information
Description
Key features:
- Clean-in-place capability for effortless maintenance and hygiene upkeep.
- IP66 rating, offering protection against dust and powerful water jets.
- Totally Enclosed Fan Cooled (TEFC) design for enhanced durability and protection.
- Powerful 0.75kW motor, delivering efficient performance at 900RPM.
- IE3 efficiency rating, minimizing energy consumption and reducing operating costs.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 , ensuring corrosion resistance and durability.
- Certification: Holds cURus certification.
