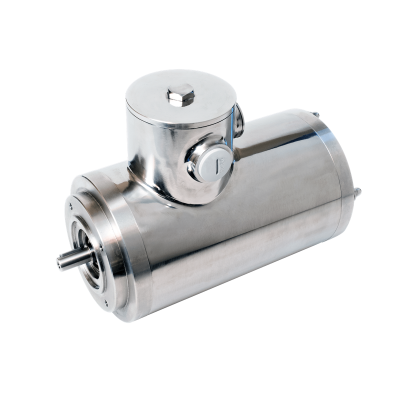

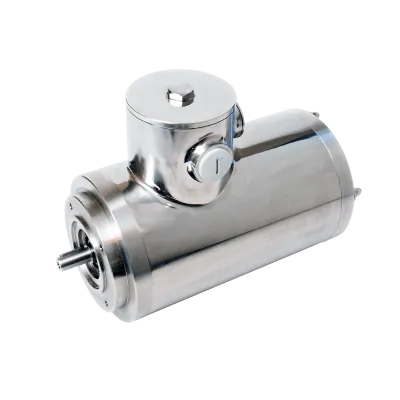

Marlin AC motor TENV80A-2, 0.75kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TENV80A-2
Specifications
Product description
Downloads
€1,009.78
Made to order
Expected shipment: 14-02-2025
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TENV 80A-2
Speed (RPM)
2800
Rated output (kW)
0.75
Efficiency (% FL)
84.6
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.51/1.45
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
8.4
Mounting
B14
IEC norm
80
BCD
100
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TENV
Thermal protection
PTC
Description
Key features:
- Clean-in-Place: The motor's design allows for easy cleaning and maintenance, making it suitable for industries with stringent hygiene standards.
- IP66 rating: With a robust ingress protection rating, the motor is dust-tight and protected against powerful water jets, making it ideal for washdown applications.
- TENV (Totally Enclosed, Non-Ventilated): The motor's construction ensures that no outside contaminants can enter.
- 0.75kW power: This motor delivers a power output of 0.7kW.
- 2800RPM speed: Operating at 2800RPM, the motor ensures smooth and efficient performance in demanding tasks.
- B14 flange: The motor features a B14 flange, making installation and integration into existing systems convenient and straightforward.
- IE3 efficiency: The motor boasts high energy efficiency, meeting IE3 standards.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2 compliant.
- Certification: The motor holds cURus certification and is UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
