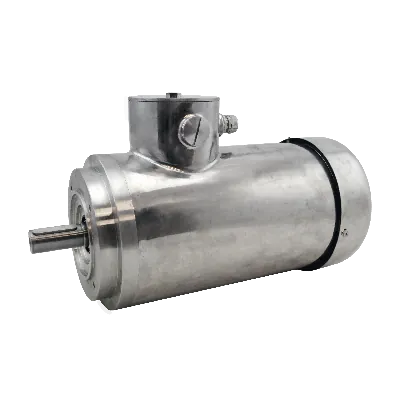

Marlin AC motor TEFC80A-2, 0.75kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC80A-2The Marlin TEFC80A-2 is a hygienic-grade IEC-standard AC motor rated at 0.75 kW, operating at 2800 RPM (2-pole). Built with a stainless steel EN 1.4301 housing, it offers durability, corrosion resistance, and easy washdown for use in demanding hygienic production environments.
This motor features a Totally Enclosed Fan Cooled (TEFC) construction, IP66 ingress protection, and PTC thermal protection. Equipped with a B14 flange (Ø100 mm BCD) and a Ø19 mm shaft, it is optimized for integration into cleanroom, food, and pharmaceutical systems. The motor delivers a pull-out torque of 3.6 Nm, a break-away torque of 3.9 Nm, and maintains an IE3 energy efficiency rating (84.6%), supporting high performance and reliability under continuous-duty (S1) operation.
Typical applications:
-
High-speed conveyors
-
Clean-in-place rotating systems
-
Dosing pumps and mixers
-
Stainless steel drive components in wet zones
In stock
Expected shipment:
More Information
Description
Key Features:
- Clean-in-Place (CIP) Capabilities: Enables hassle-free cleaning and maintenance, ensuring hygienic standards.
- IP66 Rating: Provides protection against dust and powerful jets of water.
- Totally Enclosed Fan Cooled (TEFC): Ensures that the motor is fully enclosed to prevent any contact with internal components.
- High power output: Boasting a 0.75kW power rating.
- Efficient performance: With a rapid rotational speed of 2800RPM.
- B14 flange: Facilitates easy installation and compatibility with a variety of industrial setups.
- IE4 efficiency: Offers energy efficiency, leading to reduced operational costs.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2.
- Certification: cURus and UL Approved.
