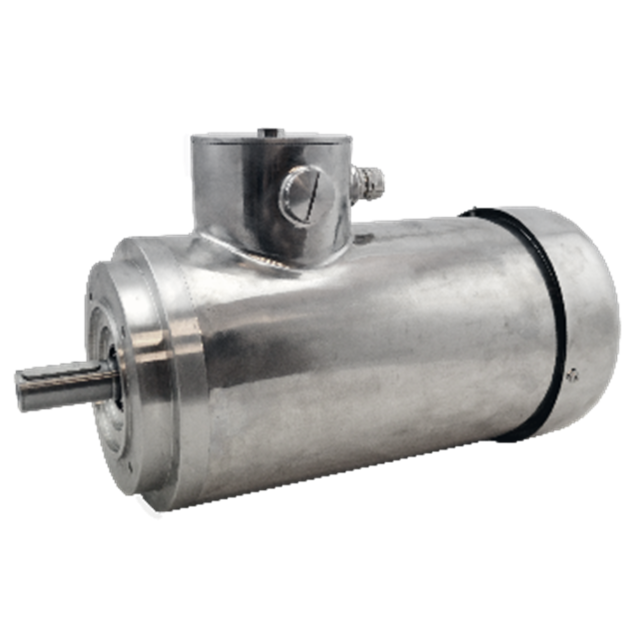

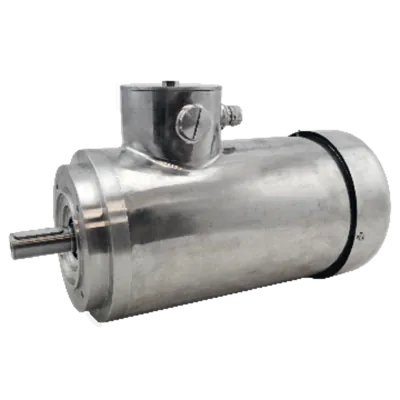

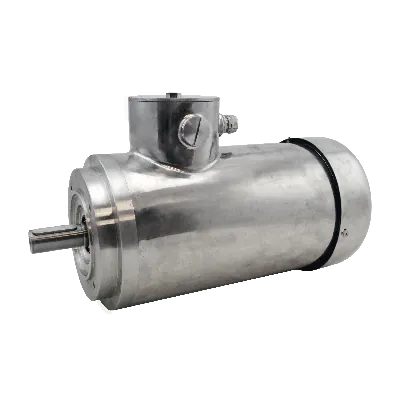

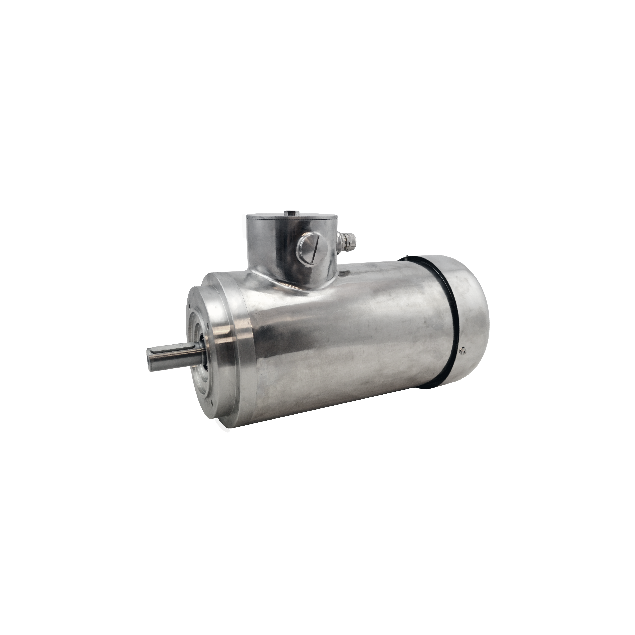

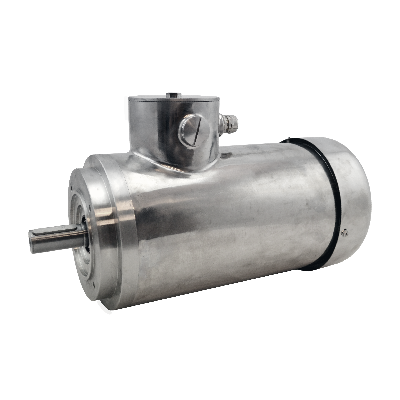

Marlin AC motor TEFC71B-2, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC71B-2The Marlin TEFC71B-2 AC Motor is made from stainless steel, delivering 0.55kW at 2800RPM. It operates on 230/400V, 50Hz power supplies and is IP66 rated for dust and water resistance.
Specifications
Product description
Downloads
€1,269.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 66
Model
TEFC 71B-2
Speed (RPM)
2800
Rated output (kW)
0.55
Efficiency (% FL)
82
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.92/1.11
Nominal torque (Nm)
1.85
Start current ratio (IA/IN)
7.8
Mounting
B14
IEC norm
71
BCD
85
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TENV
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): The motor's seamless design allows for easy cleaning and maintenance.
- IP66 rating: Built to withstand rigorous cleaning routines, the motor is protected against dust and water ingress.
- Totally Enclosed Fan Cooled (TEFC): The TEFC enclosure provides complete protection to the motor's internal components.
- Robust Performance: With a power output of 0.55kW and a rapid 2800RPM speed, this motor delivers reliable and efficient performance.
- B14 flange: The B14 flange design facilitates easy installation and integration into existing systems.
Specifications:
- Material composition: Crafted from EN 1.4301/AISI 304 stainless steel, along with EN 1672-2 compliant components.
- Certifications: The motor carries cURus certification and is UL approved.
Downloads
![TEFC 71 2B IMB14 FT85 0,55KW[1]](https://shop.bj-gear.com/static/version1740140683/frontend/BJGear/default/en_US/Novicell_Theme/images/step.webp)
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
