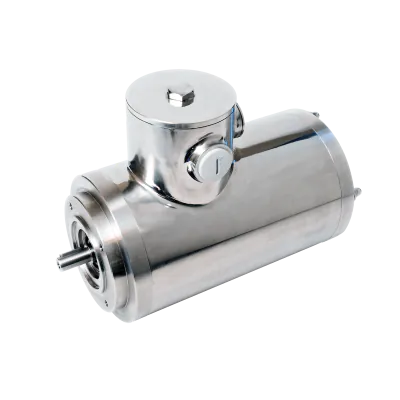

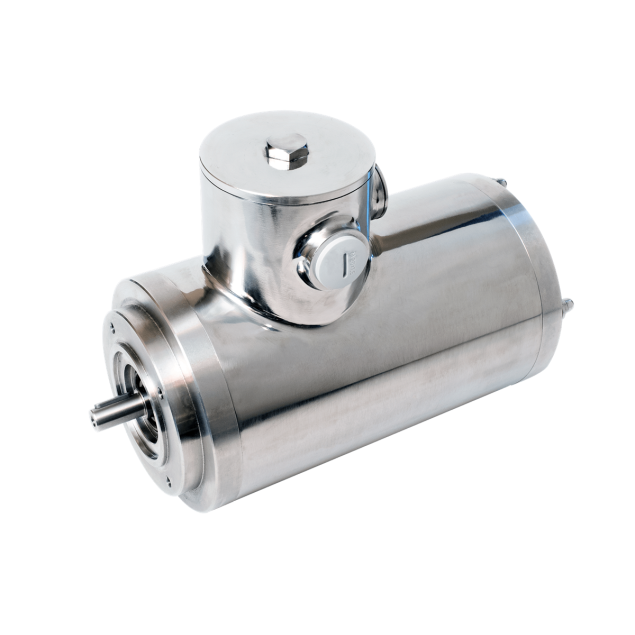

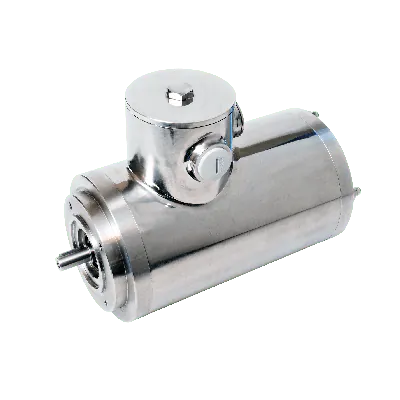

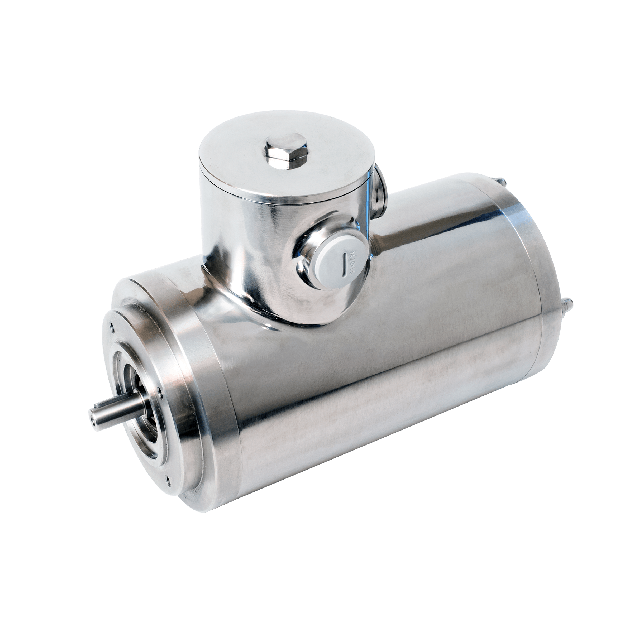

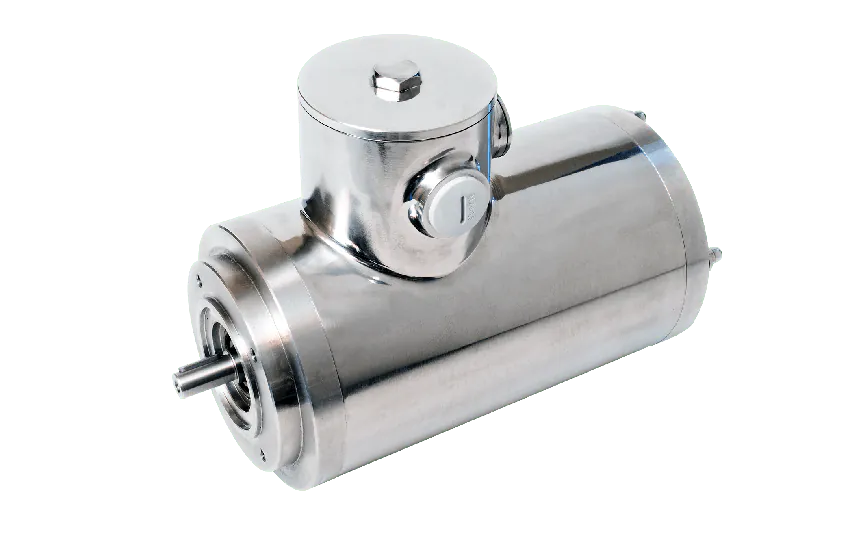

Marlin AC motor TENV71B-2, 0.55kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TENV71B-2
Specifications
Product description
Downloads
€891.00
Made to order
Expected shipment: 21-03-2025
More Information
IP classification
IP 66
Model
TENV 71B-2
Speed (RPM)
2880
Rated output (kW)
0.55
Efficiency (% FL)
82
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.92/1.11
Nominal torque (Nm)
1.85
Start current ratio (IA/IN)
7.8
Mounting
B14
IEC norm
71
BCD
85
Poles
2
Certifications
UL, cURus
Efficiency standard
IE4
Shaft diameter (mm)
Ø14
Cooling
TENV
Thermal protection
PTC
Description
Key features:
- Clean-in-Place: Designed to facilitate easy cleaning and maintenance, ensuring optimal hygiene standards are met.
- IP66 rating: Provides protection against dust and water ingress, making it suitable for harsh and challenging environments.
- Totally Enclosed Non-Ventilated (TENV): Ensures effective protection against contaminants.
- Powerful performance: Boasting a 0.55kW output and a rapid 2800RPM rotation speed.
- B14 flange: Offers a robust mounting solution.
Specifications:
- Materials: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: Holds cURus certification and UL approval.
