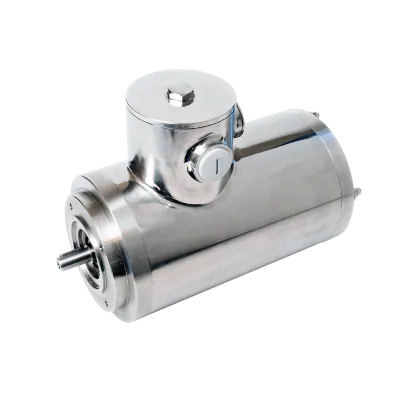

Marlin AC motor TENV80A-4Ø14, 0.55kW, 1400RPM, Ø14mm, 230/400V, 50Hz, IP66, stainless steel
TENV80A-4Ø14
Specifications
Product description
Downloads
€997.00
Made to order
Expected shipment: 11-11-2025
More Information
IP classification
IP 66
Model
TENV 80A-4Ø14
Speed (RPM)
1400
Rated output (kW)
0.55
Efficiency (% FL)
82
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.35/1.35
Nominal torque (Nm)
3.68
Start current ratio (IA/IN)
5.7
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Certifications
UL
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TENV
Thermal protection
PTC
Description
Key features:
- Clean-in-place design facilitates easy and thorough cleaning, maintaining hygienic standards.
- IP66 rating guarantees protection against dust and water ingress.
- Totally Enclosed Non-Ventilated (TENV) construction ensures protection against contaminants and moisture.
- Powerful 0.55kW output provides ample torque for efficient and consistent performance.
- Operating at 1400RPM, the motor delivers consistent speed for precise applications.
- B14 flange enables straightforward installation onto compatible equipment.
- Special shaft with dimensions Ø14x30mm offers versatility.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2 construction.
- Certification: UL approval.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
