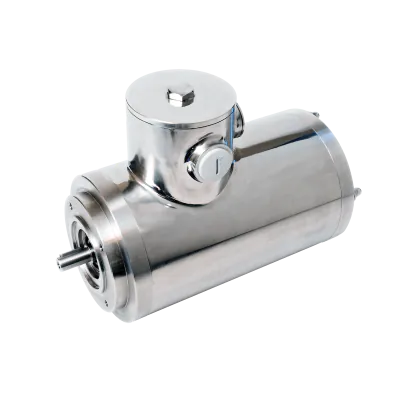

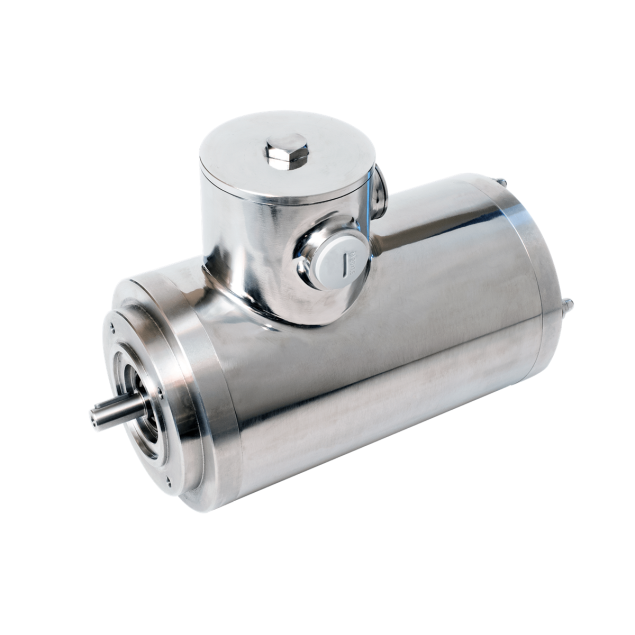

Marlin AC motor TENV80A-4, 0.55kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TENV80A-4
Specifications
Product description
Downloads
€880.00
Made to order
Expected shipment: 14-03-2025
More Information
IP classification
IP 66
Model
TENV 80A-4
Speed (RPM)
1400
Rated output (kW)
0.55
Efficiency (% FL)
82
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.35/1.35
Nominal torque (Nm)
3.68
Start current ratio (IA/IN)
5.7
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TENV
Thermal protection
PTC
Description

Key features:
- Clean-in-Place (CIP): Facilitates easy and efficient cleaning, ensuring the motor maintains its hygiene standards without compromising performance.
- IP66 rating: Provides a high level of protection against dust and powerful water jets, making it suitable for harsh washdown environments.
- Totally Enclosed Non-Ventilated (TENV) Design: Shields the motor from external contaminants and prevents the ingress of water.
- Power and speed: Delivers a robust power of 0.55kW and operates at a steady 1400RPM.
- B14 flange: Ensures secure and convenient mounting.
Specifications:
- Material: Constructed from premium EN 1.4301/AISI 304 and EN 1672-2 compliant components.
- IP69K compliance: When paired with a gearbox and appropriate cable gland, the motor meets the strict IP69K standard.
- Certification: The motor holds cURus certification and is UL approved.
Downloads


Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
