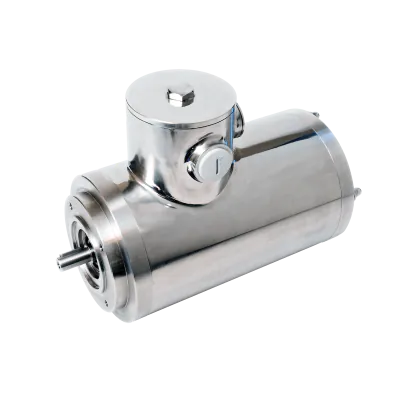

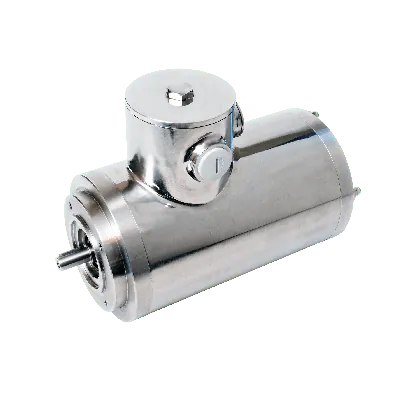

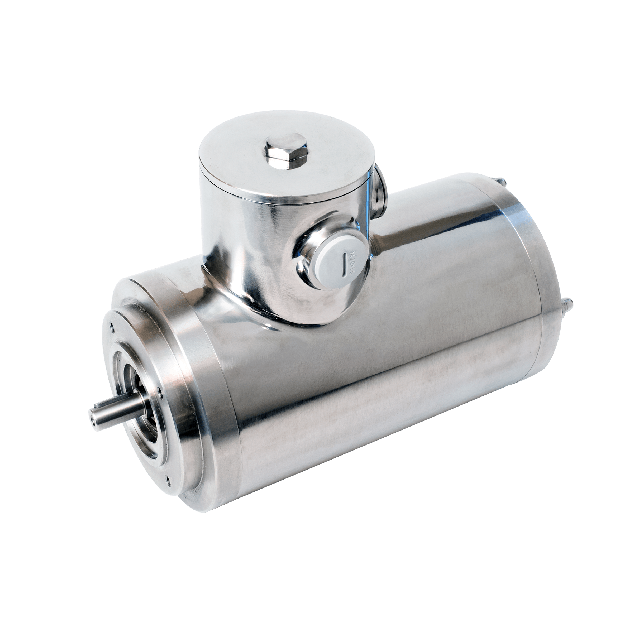

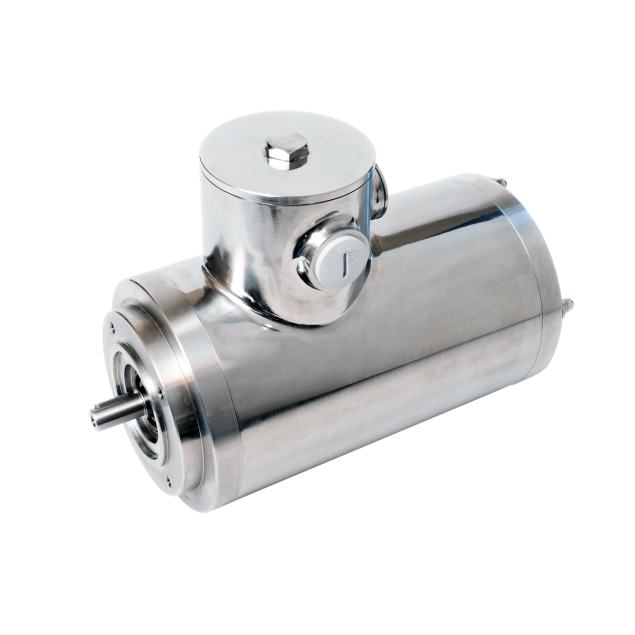

Marlin AC motor TENV80B-6, 0.55 kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel
TENV80B-6The Marlin AC motor TENV80B-6 is a stainless steel IEC motor engineered for hygienic and demanding industrial environments. Delivering a power output of 0.55 kW, a nominal torque of 5.62 Nm, and a speed of 900 RPM (6-pole), it provides controlled, reliable, and energy-efficient performance for a wide range of applications.
Built from EN 1.4301/AISI 304 stainless steel and designed in compliance with EN 1672-2 hygienic standards, this motor ensures long-lasting corrosion resistance and suitability for Clean-in-Place (CIP) processes. Its IP66 enclosure makes it fully dust-tight and resistant to high-pressure water jets, making it ideal for use in washdown environments such as food, beverage, and pharmaceutical industries.
The motor features a Totally Enclosed Non-Ventilated (TENV) cooling system, which eliminates airflow through the housing and prevents ingress of contaminants. With B14 flange mounting, UL and cURus certifications, and an IE3 efficiency rating, this motor is both globally approved and designed to minimize energy consumption.
Made to order
Expected shipment:
More Information
Description
Key Features
-
Clean-in-Place (CIP) capable – simplifies cleaning, ensuring optimal hygiene.
-
IP66 protection – complete resistance to dust and high-pressure water jets.
-
TENV cooling design – fully sealed, contamination-proof motor housing.
-
Balanced performance – 0.55 kW output, 900 RPM, and 5.62 Nm torque.
-
B14 flange mounting – secure installation with reduced vibration.
-
IE3 efficiency class (78%) – energy-efficient and environmentally responsible.
-
UL and cURus certified – international quality and safety compliance.
