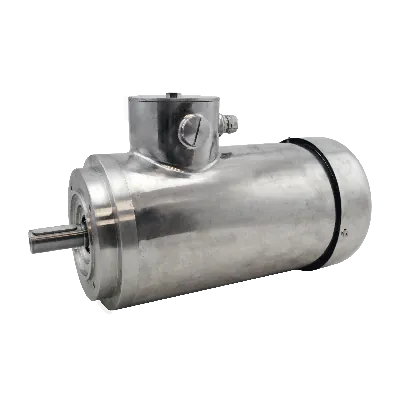

Marlin AC motor TEFC71A-2, 0.37kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC71A-2
Specifications
Product description
Downloads
€1,222.52
Made to order
Expected shipment: 10-03-2025
More Information
IP classification
IP 66
Model
TEFC 71A-2
Speed (RPM)
2800
Rated output (kW)
0.37
Efficiency (% FL)
80.4
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.39/0.80
Nominal torque (Nm)
1.26
Start current ratio (IA/IN)
6.4
Mounting
B14
IEC norm
71
BCD
85
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TEFC
Description
Key features:
- Clean-in-Place (CIP) Capable: The motor's design facilitates cleaning, allowing for convenient maintenance and adherence to strict hygiene standards.
- IP66 rating: With an IP66 rating, the motor is protected against dust ingress and powerful jets of water.
- TEFC (Totally Enclosed Fan Cooled): This design feature protects the motor from external elements.
- 0.37kW Power: The motor boasts a 0.37kW output.
- 2800RPM speed: Operating at 2800RPM, the motor delivers precise and consistent performance.
- B14 flange: The B14 flange configuration simplifies motor installation.
- IE3 efficiency: With an IE3 efficiency rating, the motor optimizes energy consumption.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2.
- Certification: cURus certification and UL approved.
