Marlin AC motor TENV71A-2, B14, 0.37kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel

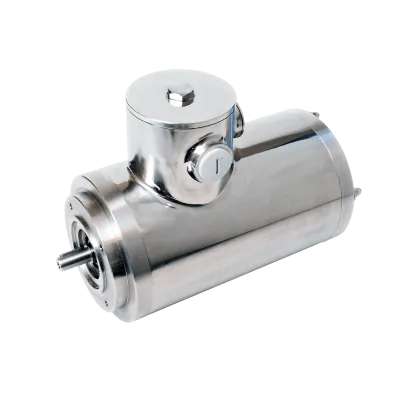

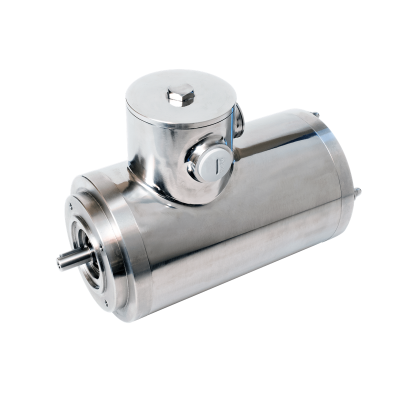

TENV71A-2The Marlin TENV71A-2 is a hygienic IEC-standard stainless steel motor rated at 0.37 kW, running at 2830 RPM (2-pole). Engineered for applications requiring rapid acceleration and compact form factors, it is ideal for washdown environments in food, beverage, and cleanroom production.
Manufactured from EN 1.4301 stainless steel, this motor features Totally Enclosed Non-Ventilated (TENV) cooling, IP66 ingress protection, and PTC thermal protection. With a B14 flange (Ø85 mm BCD) and Ø14 mm shaft, it integrates easily into compact hygienic systems. IE4 energy efficiency (80.4%), pull-out torque of 3.8 Nm, and break-away torque of 3.9 Nm ensure consistent performance and low energy loss during continuous duty.
Typical applications:
-
Small conveyors in wet zones
-
Filling and dosing units
-
Hygienic mixers and agitators
-
OEM components in stainless steel assemblies
In stock
Expected shipment:
More Information
Description
Key features:
- Clean-in-Place (CIP) Design: Facilitates easy cleaning and maintenance.
- IP66 rating: Provides protection against dust and powerful jets of water.
- Totally Enclosed, Non-Ventilated (TENV): Protects internal components from external elements.
- 0.37kW power: Delivers efficient performance.
- High speed: Operates at 2800RPM.
- B14 flange: Offers a versatile mounting option, simplifying installation and integration into existing systems.
Specifications:
- Motor material: EN 1.4301/AISI 304, EN 1672-2
- Certification: cURus and UL Approved, meeting the highbsafety standards.
- IP69K rating: When mounted correctly with gearbox, cable, and cable gland.
Downloads
