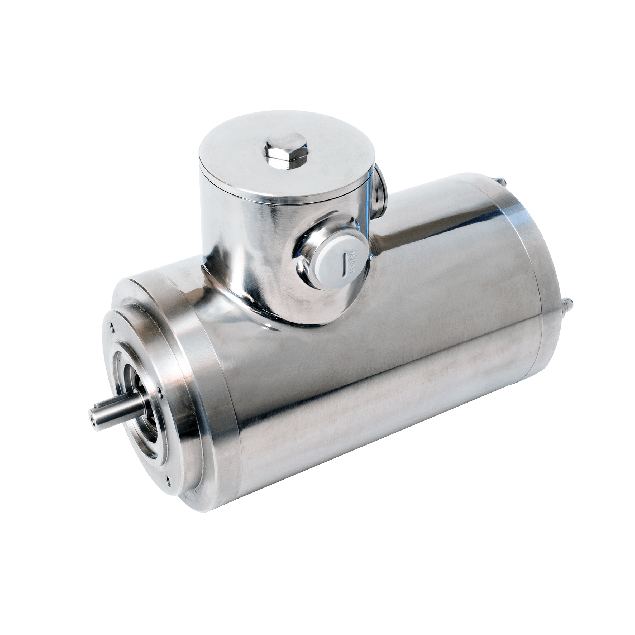

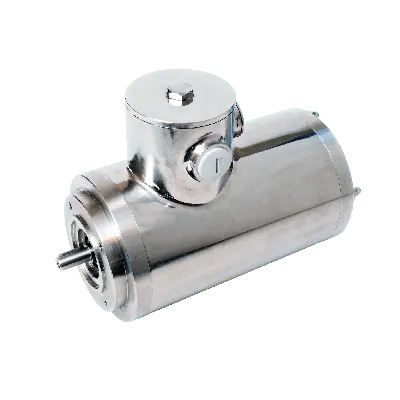

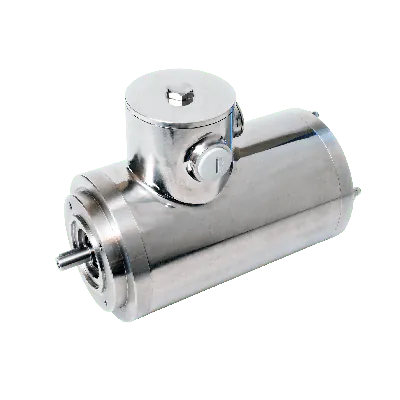

Marlin AC motor TENV71B-4, 0.37kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TENV71B-4
Specifications
Product description
Downloads
€806.00
Made to order
Expected shipment: 17-03-2025
More Information
IP classification
IP 66
Model
TENV 71B-4
Speed (RPM)
1400
Rated output (kW)
0.37
Efficiency (% FL)
80
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.80/1.04
Nominal torque (Nm)
2.48
Start current ratio (IA/IN)
4.5
Mounting
B14
IEC norm
71
BCD
85
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TENV
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): The motor's design allows for easy cleaning and maintenance.
- IP66 rating: The motor is dust-tight and protected against powerful water jets.
- Totally Enclosed, Non-Ventilated (TENV): The motor's enclosure prevents any external particles from entering.
- 0.37kW power: With a power rating of 0.37kW, this motor delivers a reliable and efficient performance.
- 1400RPM speed: The motor operates at a speed of 1400RPM.
- B14 flange: The B14 flange design simplifies installation and ensures a secure fit.
- IE3efficiency: The motor boasts high energy efficiency, meeting IE3 standards and reducing power consumption.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- IP69K compatibility: When mounted on a gearbox with the correct cable and cable gland, the motor complies with IP69K standards, offering reliable protection against high-pressure and high-temperature washdowns.
- Certifications: The AC-motor holds cURus certification and is UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
