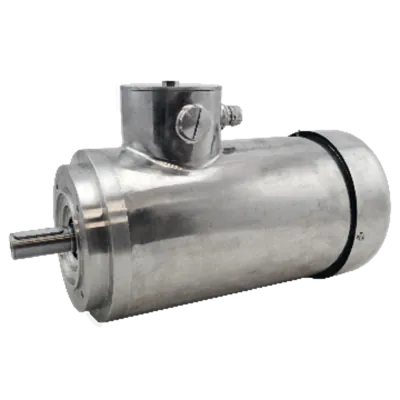

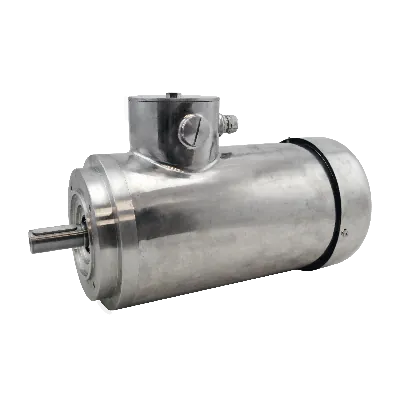

Marlin AC motor TEFC63B-2, 0.25kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC63B-2The Marlin TEFC63B-2 is a compact IEC-standard AC motor rated at 0.25 kW, operating at 2800 RPM (2-pole). Built from stainless steel EN 1.4301, it offers a hygienic and corrosion-resistant design ideal for space-constrained applications in food, beverage, and pharmaceutical production.
This model features Totally Enclosed Fan Cooled (TEFC) construction, IP66 ingress protection, PTC thermal protection, and a B14 flange (Ø75 mm BCD) with a Ø11 mm shaft. It delivers a pull-out torque of 4.2 Nm, break-away torque of 4.4 Nm, and conforms to IE2 energy efficiency standards (76.8%). The motor is UL and cURus certified.
Typical applications:
-
Compact conveyor drives
-
Dosing and filling stations
-
Clean-in-place (CIP) systems
-
OEM components in hygienic machines
In stock
Expected shipment:
More Information
Description
Key features:
- Clean-In-Place (CIP) Design: Enables effortless and efficient cleaning, ensuring optimal hygiene standards are maintained.
- IP66 rating: Provides complete protection against dust and water ingress, making it suitable for challenging environments.
- TEFC (Totally Enclosed Fan Cooled): Ensures robust protection against external contaminants.
- 0.18kW power output: Strikes the perfect balance between power and energy efficiency, resulting in cost-effective operations.
- 1385RPM: Offers precise control over motor speed.
- B14 flange: Facilitates easy installation and compatibility with a wide range of equipment.
- IE2 efficiency rating: Demonstrates high energy efficiency, leading to reduced energy consumption.
Specifications:
- Material: Crafted from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: cURus certification and UL approved.
