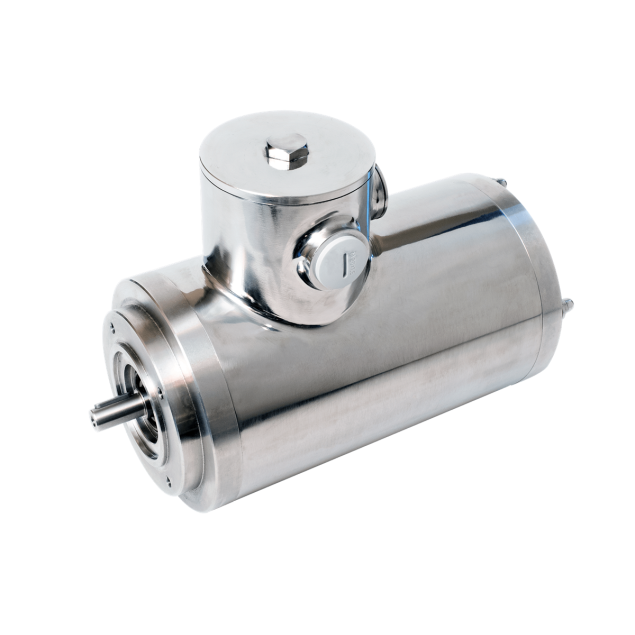

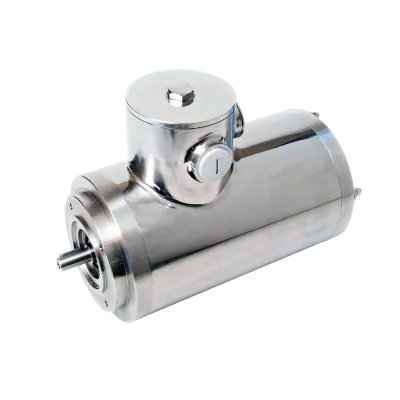

Marlin AC motor TENV71A-4, 0.25kW, 1400RPM, 230/400V, 50Hz, IP66, stainless steel
TENV71A-4
Specifications
Product description
Downloads
€773.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 66
Model
TENV 71A-4
Speed (RPM)
1400
Rated output (kW)
0.25
Efficiency (% FL)
81
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.07/0.62
Nominal torque (Nm)
1.67
Start current ratio (IA/IN)
5.1
Mounting
B14
IEC norm
71
BCD
85
Poles
4
Certifications
UL, cURus
Efficiency standard
IE4
Shaft diameter (mm)
Ø14
Cooling
TENV
Description
Key features:
- Clean-In-Place (CIP) Capability: The motor's seamless design allows for easy cleaning, ensuring strict hygiene standards are met.
- IP66 rating: The motor boasts a high level of protection against dust and water ingress.
- Totally Enclosed, Non-Ventilated (TENV): The TENV construction prevents external contaminants from entering the motor.
- 0.25kW power: With a power output, this motor delivers efficient performance.
- 1400RPM speed: The motor's rotational speed provides optimal performance.
- B14 flange: The B14 flange design ensures easy and secure mounting.
Specifications:
- Material: EN 1.4301/AISI 304, EN 1672-2 construction.
- Certification: cURus certification and UL approval.
