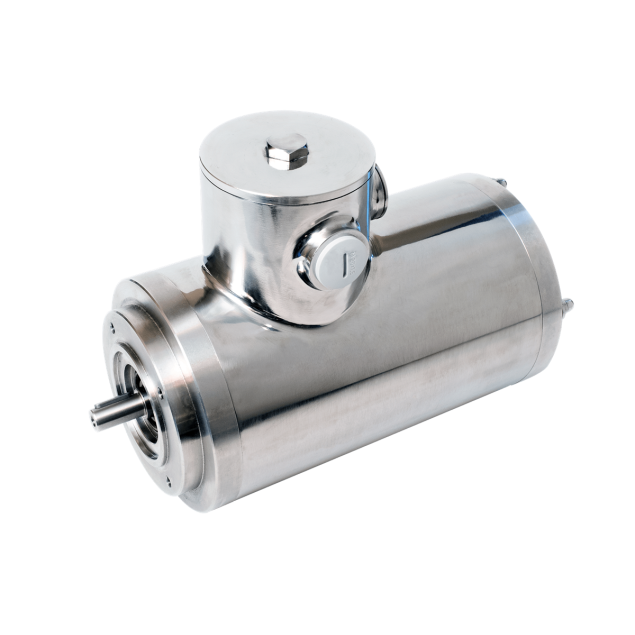

Marlin AC motor TENV71A-6, 0.18kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel
TENV71A-6
The Marlin TENV71A-6 AC motor in stainless steel is a reliable and efficient solution. With 0.18kW at 900RPM, it is ideal for applications requiring consistent performance at lower speeds. The motor supports 230/400V power at 50Hz and features IP66 protection against dust and water, making it suitable for demanding industrial environments.
Specifications
Product description
Downloads
€848.11
In stock
Expected shipment: 05-11-2024
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TENV 71A-6
Speed (RPM)
900
Rated output (kW)
0.18
Efficiency (% FL)
70
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.92/0.53
Nominal torque (Nm)
1.87
Start current ratio (IA/IN)
3.6
Mounting
B14
IEC norm
71
BCD
85
Poles
6
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø14
Cooling
TENV
Description
Key features:
- Clean-In-Place (CIP): Ensures easy and thorough cleaning, maintaining the high standards of hygiene in food processing and critical environments.
- IP66 rating: Provides protection against dust and powerful jets of water, making it suitable for harsh and washdown environments.
- Totally Enclosed Non-Ventilated (TENV) Design: Prevents dust and moisture from entering the motor.
- High power output: Boasts an 0.18kW power rating, making it suitable for a wide range of industrial applications.
- Optimal speed: Operates at 900RPM.
- B14 flange: Facilitates easy and secure mounting.
Specifications:
- Materials: Crafted from EN 1.4301/AISI 304 and EN 1672-2 compliant components.
- IP69K compliance: When mounted on a gearbox with the appropriate cable and cable gland, the motor meets the rigorous IP69K standard, safeguarding against high-pressure, high-temperature washdowns.
- Certifications: Holds cURus certification and is UL approved.
