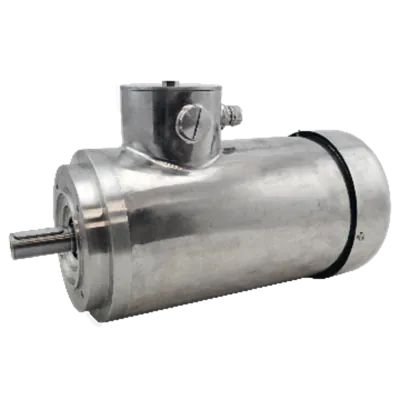

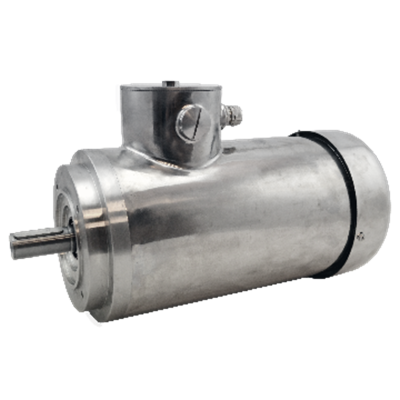

Marlin AC motor TEFC63A-2, 0.18kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC63A-2The Marlin TEFC63A-2 AC Motor is constructed from stainless steel. It boasts a 0.18kW power output and operates at a high speed of 2800RPM. Designed for compatibility with 230/400V power supplies and a 50Hz frequency, it also features an IP66 rating.
Specifications
Product description
Downloads
€1,084.00
In stock
Expected shipment: 24-02-2025
More Information
IP classification
IP 66
Model
TEFC 63A-2
Speed (RPM)
2800
Rated output (kW)
0.18
Efficiency (% FL)
75
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.78/0.45
Nominal torque (Nm)
0.62
Start current ratio (IA/IN)
4.7
Mounting
B14
IEC norm
63
BCD
75
Poles
2
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø11
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): Ensures easy and effective cleaning, maintaining hygiene standards.
- IP66 rating: Provides protection against dust and powerful water jets, ensuring reliable operation in harsh environments.
- TEFC (Totally Enclosed Fan-Cooled): Prevents the ingress of contaminants.
- 0.18kW output: Strikes a balance between power and energy efficiency, reducing operational costs.
- 2800RPM speed: Offers rapid and precise motor performance.
- B14 flange: Enables simple and sturdy mounting, enhancing overall system stability.
- IE2 efficiency class: Ensures optimal energy usage, reducing energy consumption and environmental impact.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: Holds cURus certification and is UL approved.
Downloads
![TEFC 63 2A FT75 0,18KW[1]](https://shop.bj-gear.com/static/version1740140683/frontend/BJGear/default/en_US/Novicell_Theme/images/step.webp)
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
