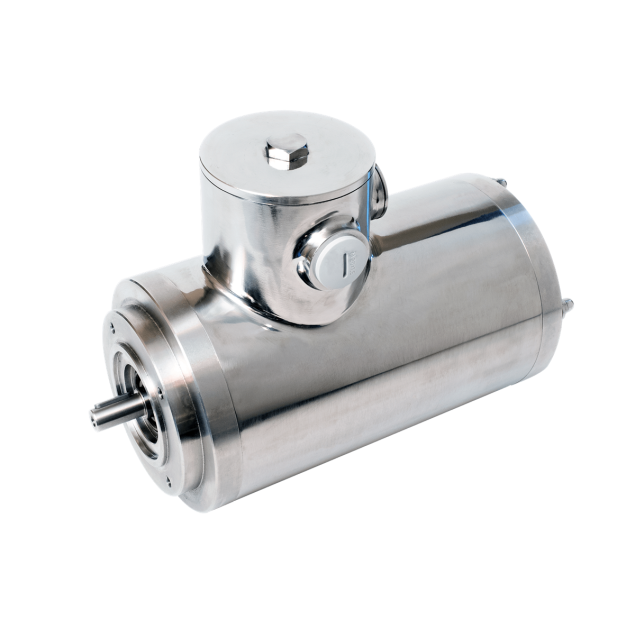

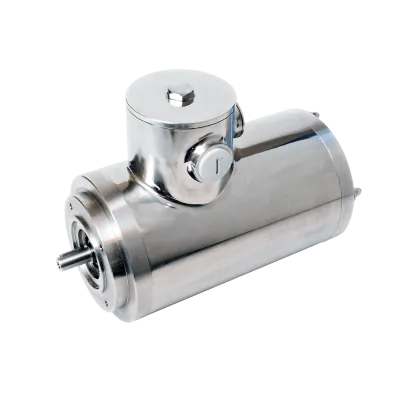

Marlin AC motor TENV63A-2, 0.18kW, 2800RPM, 230/400V, 50Hz, IP66, stainless steel
TENV63A-2The Marlin TENV63A-2 AC motor, a compact motor for industrial use. This stainless steel motor delivers 0.18kW at 2800RPM, with an IP66 rating for hygiene and durability. It's designed for 230/400V, 50Hz systems, offering efficiency and reliability in a sleek package.
Specifications
Product description
Downloads
€734.58
Made to order
Expected shipment: 14-02-2025
More Information
IP classification
IP 66
Producer
Kaiser motoren
Model
TENV 63A-2
Speed (RPM)
2800
Rated output (kW)
0.18
Efficiency (% FL)
75
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.78/0.45
Nominal torque (Nm)
0.65
Start current ratio (IA/IN)
4.7
Mounting
B14
IEC norm
63
BCD
75
Poles
2
Certifications
UL, cURus
Efficiency standard
IE4
Shaft diameter (mm)
Ø11
Cooling
TENV
Description
Key features:
- Clean-in-Place (CIP): Designed with easy-to-clean features.
- IP66 rating: Offers protection against dust and powerful jets of water.
- Totally Enclosed Non-Ventilated (TENV): Provides an enclosed design that shields the motor from external contaminants.
- High power efficiency: Boasting 0.18kW power.
- High-speed operation: Capable of running at 2800RPM.
- B14 flange: Facilitating easy installation and compatibility with diverse machinery configurations.
Specifications:
- Materials: EN 1.4301/AISI 304, EN 1672-2.
- Certification: cURus and UL approved.
