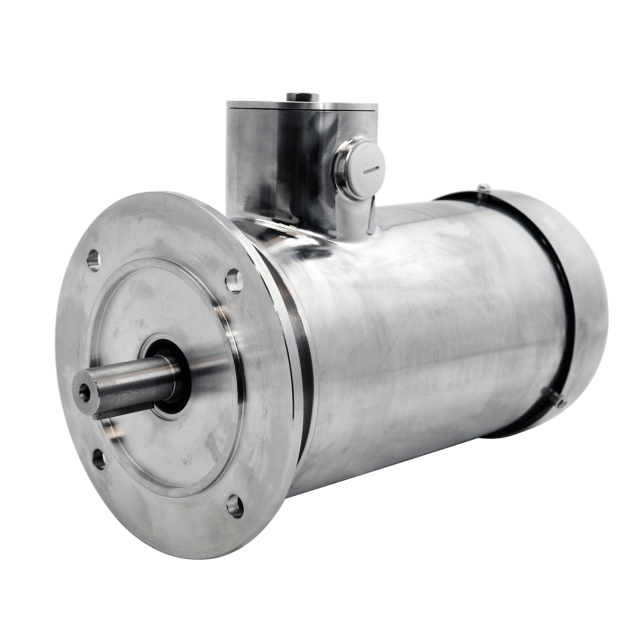

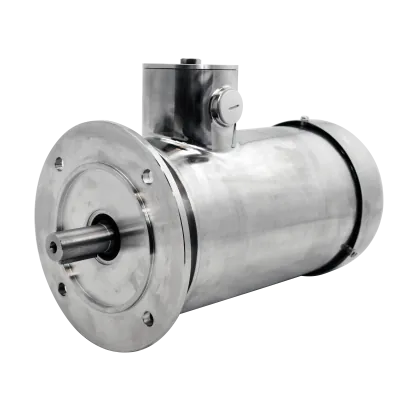

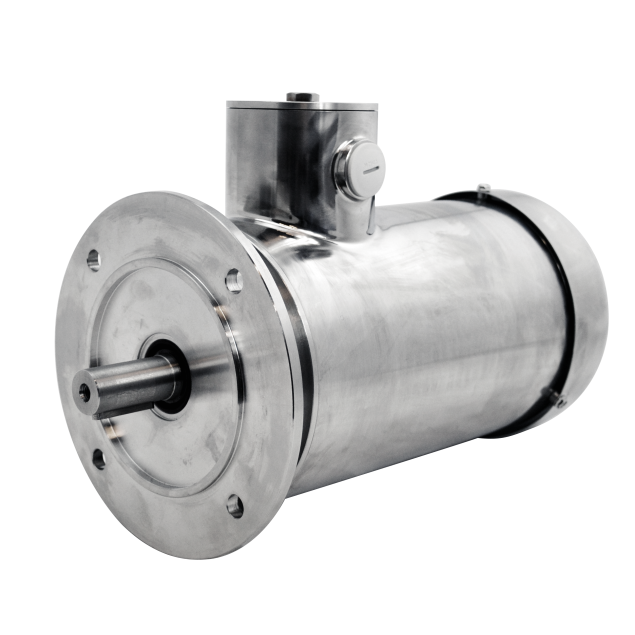

The Marlin TEFC100LA-6B5 is a corrosion-resistant IEC-standard AC motor delivering 1.5 kW at 900 RPM (6-pole), designed for 230/400 V, 50 Hz operation. Featuring a hygienic-grade stainless steel EN 1.4301 (AISI 304) housing and a fully enclosed B5 flange (IEC 100), it is ideal for food, pharma, and cleanroom automation.

Engineered for washdown zones, the motor is IP69-rated, meaning it withstands high-pressure water jets and intensive sanitation cycles. TEFC (Totally Enclosed Fan Cooled) cooling ensures long-term operation even under demanding environmental conditions. It offers a nominal torque of 15.15 Nm and complies with IE3 efficiency classification, achieving 83.7% full-load efficiency.

The motor is UL and cURus certified and incorporates PTC thermal protection, with a start-up current ratio of 4.5 IA/IN and a break-away torque factor of 2× nominal torque. It uses a 28 mm shaft with 215 mm BCD for direct coupling, and is fully compliant with IEC 60034 and IEC 60072 dimensional and performance norms.
