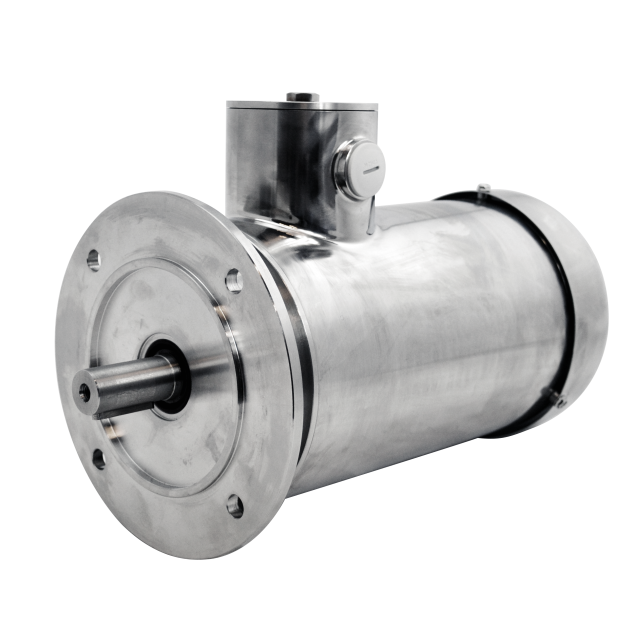

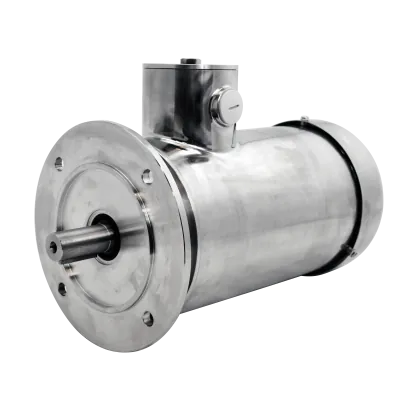

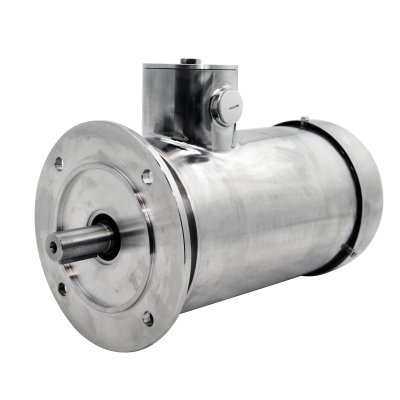

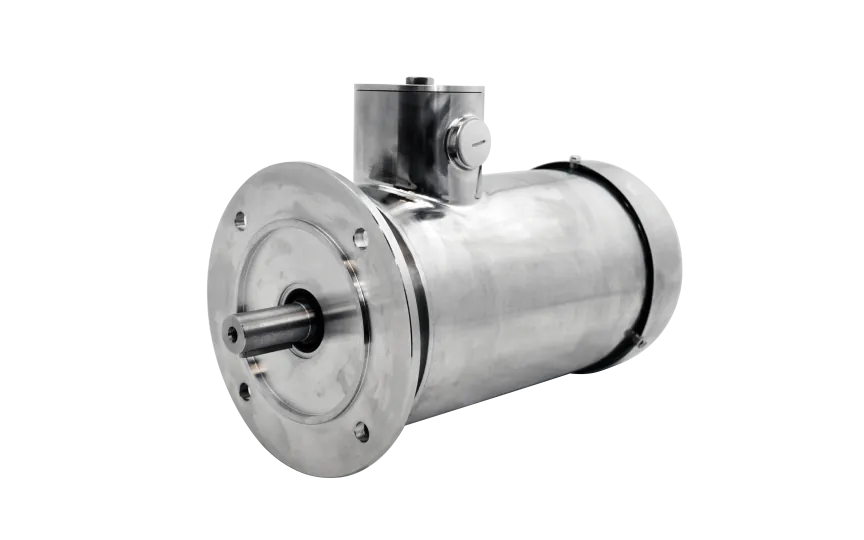

Marlin AC motor TEFC132M-4B5, 7.5kW, 1400RPM, 400/690V, 50Hz, IP66, stainless steel
TEFC132M-4B5The Marlin TEFC132M-4B5 AC motor B5, made of stainless steel, engineered for demanding industrial environments. This motor boasts a substantial 7.5kW output and operates at a consistent 1400RPM. Designed to meet IP66 standards, it is suitable for 400/690V power supplies at a 50Hz frequency.
Specifications
Product description
Downloads
€3,328.00
Made to order
Expected shipment: 21-04-2025
More Information
IP classification
IP 66
Model
TEFC 132M-4B5
Speed (RPM)
1400
Rated output (kW)
7.5
Efficiency (% FL)
90.4
Voltage connection (Δ/Y)
400/690
Rated current at voltage
14.70/8.49
Nominal torque (Nm)
49.14
Start current ratio (IA/IN)
9.2
Mounting
B5
IEC norm
132
BCD
165
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø38
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP) Capability: Facilitates easy and efficient cleaning.
- IP66 rating: Guarantees protection against dust and water ingress.
- TEFC (Totally Enclosed Fan-Cooled) Design: Enhances motor durability by preventing contaminants from entering the motor.
- 7.5kW power: Provides sufficient power for various heavy-duty industrial applications.
- 1400RPM: Offers a consistent and stable rotational speed.
- B5 flange: Enables simple and secure installation.
- IE3 efficiency: Delivers energy savings and reduces operating costs.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2 certified.
- Certification: Holds cURus certification and is UL approved.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
