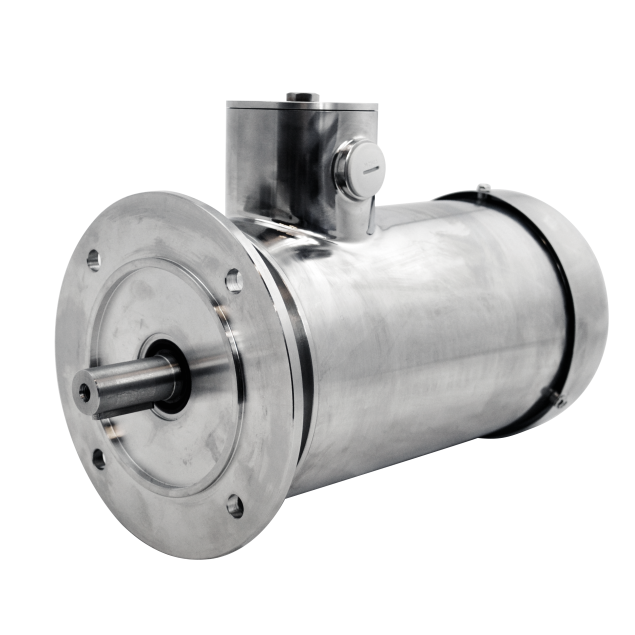

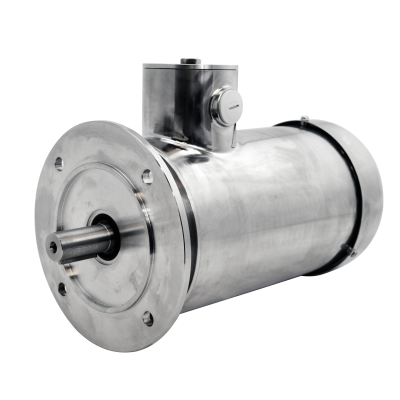

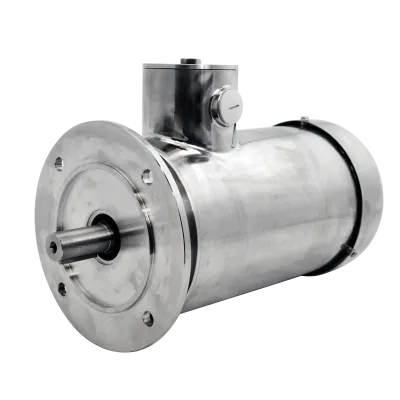

Marlin AC motor TEFC112M-2B5, 4.00kW, 2800RPM, 400/690V, 50Hz, IP66, stainless steel
TEFC112M-2B5The Marlin AC motor TEFC112M-2B5 is a high-performance stainless steel IEC motor designed for demanding environments such as food processing, pharmaceuticals, and chemical applications. With a rated output of 4.0 kW, a speed of 2800 RPM (2-pole), and a nominal torque of 13.04 Nm, this motor provides powerful and reliable operation for continuous-duty applications.
Manufactured from stainless steel (EN 1.4301/AISI 304) and compliant with EN 1672-2 hygienic design standards, the motor is resistant to corrosion, aggressive cleaning, and harsh environments. The IP66 protection class ensures full resistance to dust ingress and high-pressure water jets, making it suitable for clean-in-place (CIP) processes.
It features a TEFC (Totally Enclosed Fan-Cooled) cooling system, a B5 flange mounting for robust integration, and is certified to UL and cURus standards. With an IE3 efficiency class and 88.1% efficiency, the motor combines energy savings with long service life.
Made to order
Expected shipment:
More Information
Description
Key features:
- Clean-in-place (CIP): Designed for easy cleaning and maintenance.
- IP66 rating: Offers complete protection against dust and water ingress, making it suitable for use in harsh and wet conditions.
- TEFC (Totally Enclosed Fan Cooled): Provides enhanced protection against external elements.
- 4.00kW power output: Capable of delivering substantial power for efficient operation in heavy-duty applications.
- 2800RPM: High rotational speed enables quick and smooth performance for various industrial tasks.
- B5 flange: Facilitates easy installation and replacement.
- IE3 efficiency: Ensures energy efficiency, leading to cost savings.
Specifications:
- Materials: Constructed using EN 1.4301/AISI 304 and EN 1672-2.
- Certification: Holds cURus certification and UL approval.
