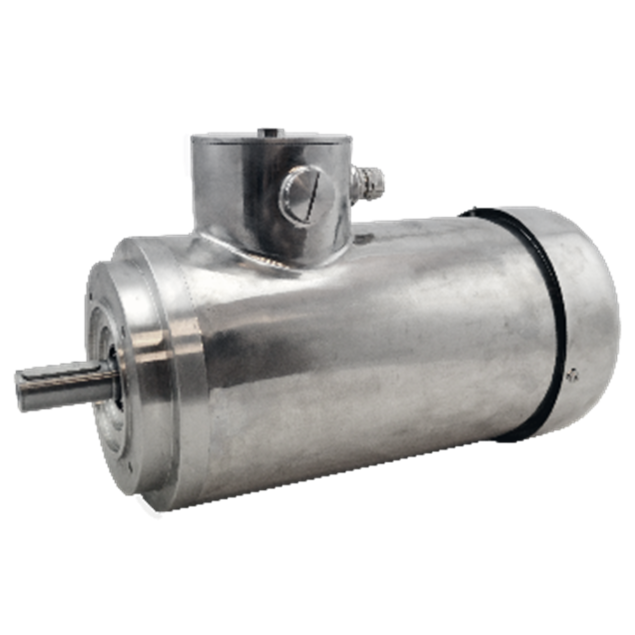

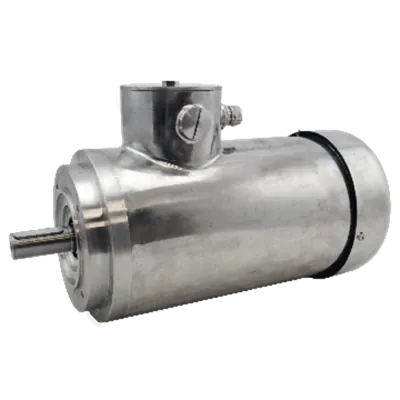

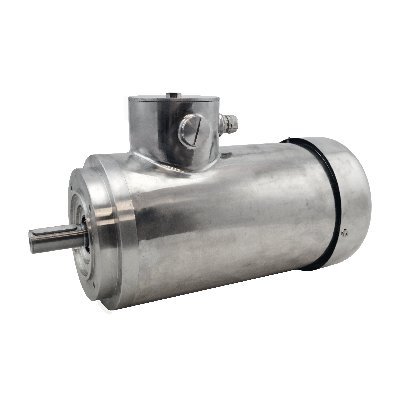

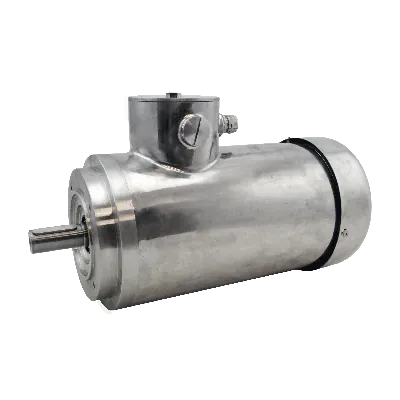

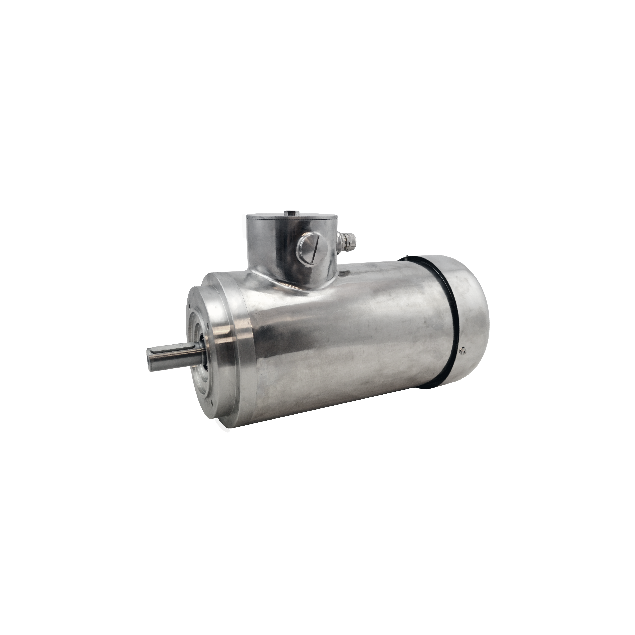

Marlin AC motor TEFC80B-6, 0.55kW, 930RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC80B-6The stainless steel AC motor is a solution designed for the food industry and other demanding applications that require material resistance. Engineered with precision and durability in mind, this motor promises seamless performance and longevity, ensuring optimal operations in challenging environments.
Specifications
Product description
Downloads
€1,808.00
In stock
Expected shipment: 23-02-2025
More Information
IP classification
IP 66
Model
TEFC 80B-6
Speed (RPM)
900
Rated output (kW)
0.55
Efficiency (% FL)
78
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.60/1.50
Nominal torque (Nm)
5.62
Mounting
B14
IEC norm
80
BCD
100
Poles
6
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): Facilitates easy cleaning and maintenance.
- IP66 rating: Provides protection against dust and water ingress.
- Totally Enclosed Fan-Cooled (TEFC) Design: Enhances motor lifespan by preventing external contaminants from entering.
- 0.55kW and 930RPM: Powerful and efficient performance.
- B14 flange: Offers a convenient and secure mounting solution.
Specifications:
- Material: Crafted from EN 1.4301/AISI 304 stainless steel.
- EN 1672-2 Compliance: Ensures the motor's suitability for use in food processing applications.
- Certification: cURus certification and UL approval signify.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
