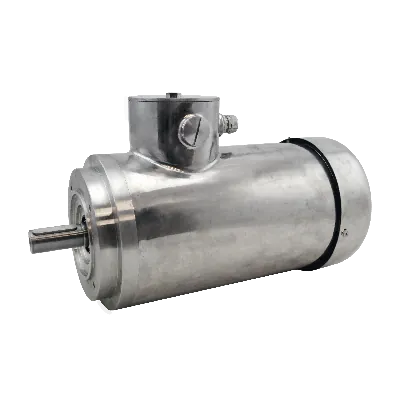

Marlin AC motor TEFC80A-4, 0.55kW, 1440RPM, 230/400V, 50Hz, IP66, stainless steel
TEFC80A-4
Specifications
Product description
Downloads
€1,526.00
Made to order
Expected shipment: 21-03-2025
More Information
IP classification
IP 66
Model
TENV 80A-4
Speed (RPM)
1400
Rated output (kW)
0.55
Efficiency (% FL)
82
Voltage connection (Δ/Y)
230/400
Rated current at voltage
2.35/1.35
Nominal torque (Nm)
3.68
Start current ratio (IA/IN)
5.7
Mounting
B14
IEC norm
80
BCD
100
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP) Design: Facilitates effortless cleaning.
- IP66 rating: Provides protection against dust and water, making it suitable for demanding environments.
- Totally enclosed fan-cooled (TEFC) housing: Guarantees efficient cooling and prevents contaminants from entering the motor.
- High power output: Boasts an 0.55kW capacity.
- Smooth operation: Operates at a steady 1440RPM.
- B14 flange: Simplifies installation and enhances the motor's overall stability.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 stainless steel and EN 1672-2 compliant.
- Certification: Comes with cURus certification and UL approval.
Downloads
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
