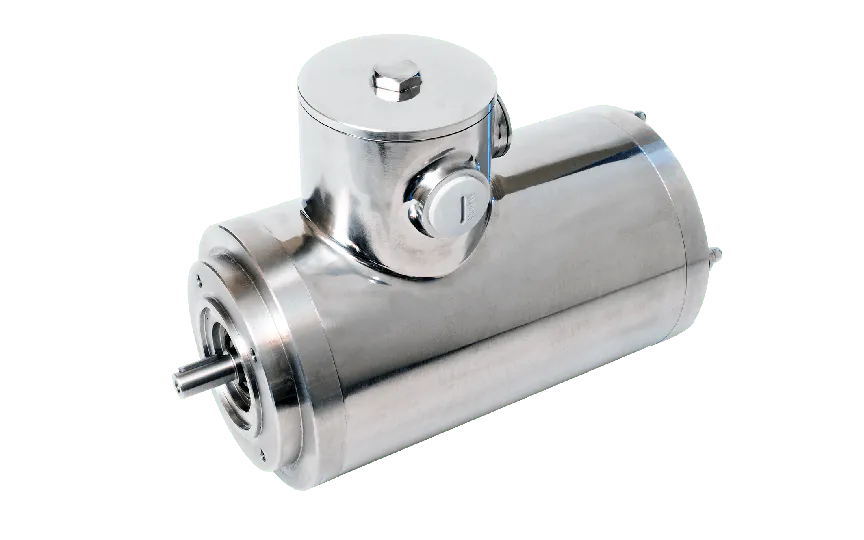

Marlin AC motor TENV80A-6, B14, 0.37kW, 900RPM, 230/400V, 50Hz, IP66, stainless steel

TENV80A-6

The Marlin TENV80A-6 is a robust 0.37 kW stainless steel AC motor, purpose-built for low-speed applications where precise, reliable torque is essential. Operating at 900 RPM with 6 poles, it provides a nominal torque of 3.73 Nm, making it ideal for conveyors, mixers, or dosing systems that require controlled, steady motion. Its EN 4301 stainless steel housing ensures outstanding corrosion resistance and is engineered to withstand rigorous washdowns — perfectly suited for food, beverage, and pharmaceutical installations. The motor’s IP66 ingress protection and Totally Enclosed Non-Ventilated (TENV) cooling system guarantee complete sealing against dust and powerful water jets, eliminating contamination risks. With an IE3 efficiency class, it offers reduced energy costs and supports sustainable production targets. Designed with IEC 80 B14 mounting and a Ø19 mm shaft, it integrates seamlessly into standard drive systems. Certified to UL and cURus, this motor delivers a dependable, low-maintenance solution that helps secure your uptime and process integrity.

€1,071.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • Clean-in-Place: The motor's design facilitates easy cleaning, allowing for quick and thorough maintenance.
  • IP66 rating: With an IP66-rated enclosure, the motor is fully protected against dust and powerful water jets.
  • TENV (Totally Enclosed Non-Ventilated): The motor's robust construction is entirely enclosed and non-ventilated.
  • 0.37kW power: This motor delivers a high power output of 0.37kW.
  • 900RPM speed: The motor operates at a smooth and precise speed of 900RPM.
  • B14 flange: The motor features a B14 flange.

Specifications:

  • Material: Crafted from EN 1.4301/AISI 304, and EN 1672-2 compliant.
  • Certification: This motor comes with cURus certification and is UL approved.

Specifications

IP classification
IP 66
Model
TENV 80A-6
Speed (RPM)
900
Rated output (kW)
0.37
Efficiency (% FL)
77.8
Voltage connection (Δ/Y)
230/400
Rated current at voltage
1.70/0.98
Nominal torque (Nm)
3.73
Start current ratio (IA/IN)
4.6
Mounting
B14
BCD
100
Poles
6
Efficiency standard
IE3
Shaft diameter (mm)
Ø19
Cooling
TENV

Downloads

Foreign trade

HS-Code
85015100
ERP net weight (Kg)
20.50
Country of origin
DEU
