Marlin AC motor TEFC63B-4, 0.18kW, 1385RPM, 230/400V, 50Hz, IP66, stainless steel

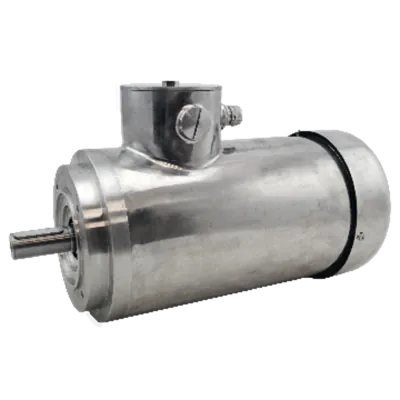

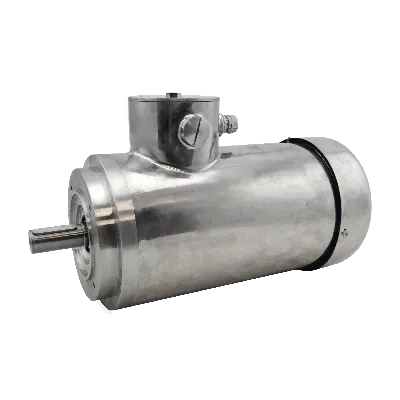

TEFC63B-4The Marlin TEFC63B-4 AC Motor is constructed with stainless steel. This motor delivers a 0.18kW output and operates at a consistent 1385RPM, ensuring reliable performance. It is designed for compatibility with 230/400V power supplies at a 50Hz frequency and boasts an IP66 rating.
Specifications
Product description
Downloads
€1,369.00
Made to order
Expected shipment: 21-03-2025
More Information
IP classification
IP 66
Model
TEFC 63B-4
Speed (RPM)
1400
Rated output (kW)
0.18
Voltage connection (Δ/Y)
230/400
Rated current at voltage
0.95/0.55
Nominal torque (Nm)
1.25
Start current ratio (IA/IN)
3.8
Mounting
B14
IEC norm
63
BCD
75
Poles
4
Certifications
UL, cURus
Efficiency standard
IE3
Shaft diameter (mm)
Ø11
Cooling
TEFC
Thermal protection
PTC
Description
Key features:
- Clean-in-Place (CIP): Facilitating easy and efficient cleaning, ensuring hygiene compliance in food processing and similar environments.
- IP66 rating: Providing protection against dust and powerful jets of water.
- Totally Enclosed Fan Cooled (TEFC): Ensuring reliable operation by preventing external contaminants from entering the motor.
- High efficiency: With a power rating of 0.18kW and a speed of 1385RPM.
- B14 flange: Simplifying installation and maintenance processes, ensuring seamless integration with other equipment.
Specifications:
- Material: Constructed from EN 1.4301/AISI 304 and EN 1672-2.
- Certification: This motor holds cURus certification and is UL approved.
Downloads
![TEFC 63 4 B14 FT75 0,18KW[1]](https://shop.bj-gear.com/static/version1740140683/frontend/BJGear/default/en_US/Novicell_Theme/images/step.webp)
Kaiser Motoren stainless steel motors operating instructions
Kaiser Motoren stainless steel motors operating instructions.pdf
Download file
