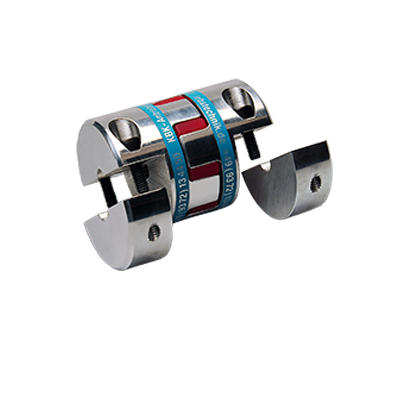

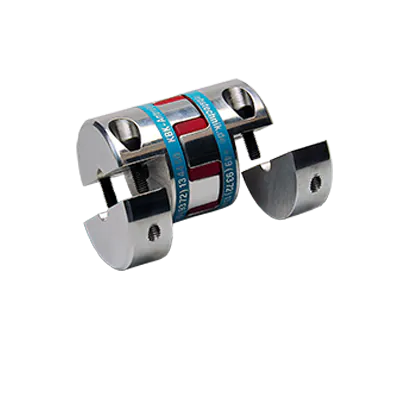

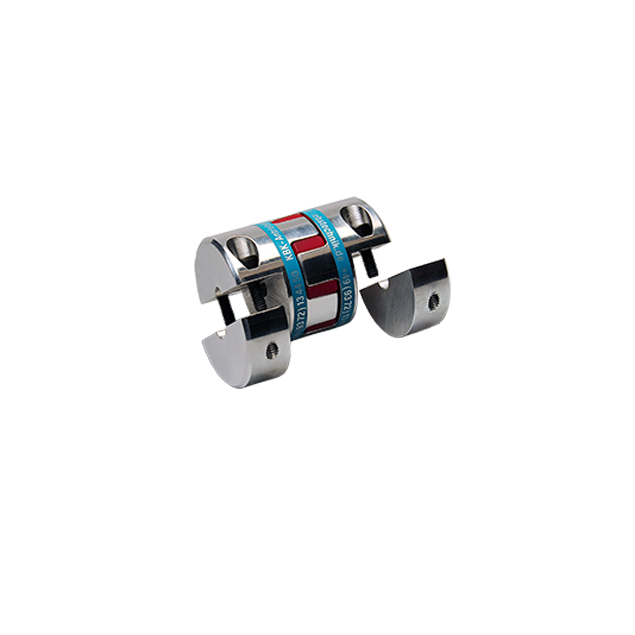

KBE2H 24 N20 N20 servo insert coupling, stainless steel and polyurethane
HV71015214The KBE2H size 24 backlash-free servo insert coupling with split hubs, is a high-quality metal bellow coupling designed for precision applications. With its features and materials, this coupling offers performance and reliability.
Specifications
Product description
Downloads
€294.99
Made to order
Expected shipment: 29-01-2025
More Information
Material
Stainless steel and polyurethane
Length (mm)
78
Max. moment (Nm)
60
Manufacturer
KBK
Coupling size
24
Outer diameter (mm)
Ø55
Bore D1
Ø20mm H7 with keyway
Bore D2
Ø20mm H7 with keyway
Description
Key features:
- Radial assembly: The coupling utilizes a radial assembly method, allowing for easy installation and adjustment of shafts before coupling assembly.
- Shaft misalignment compensation: The KBE2H coupling compensates for shaft misalignment, ensuring accurate and smooth power transmission.
- Axial pluggable: This coupling is designed to be axially pluggable, making it convenient for maintenance and replacement.
Materials:
- Split hubs: The hubs are constructed from stainless steel, providing excellent durability and resistance to corrosion.
- Spider element: The spider element, responsible for transmitting torque and compensating for misalignment, is made from polyurethane. It offers superior flexibility and resilience with a hardness of 98 Shore.
Bore specifications:
- Bore D1: Ø20mm H7 with keyway
- Bore D2: Ø20mm H7 with keyway
