Key features:

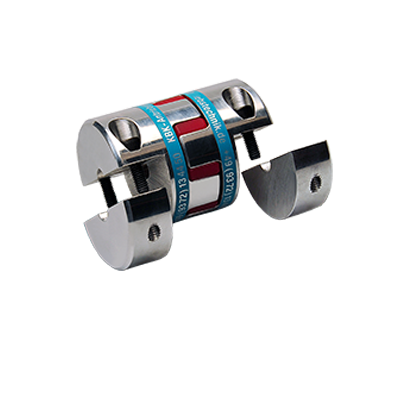

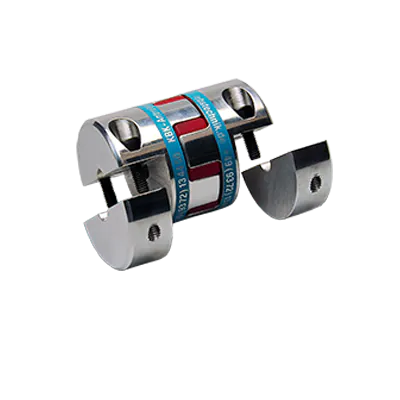

• Radial assembly: The coupling features a split hub design that allows for easy mounting and adjustment of shafts before coupling assembly. This ensures a precise and hassle-free installation process.
• Shaft misalignment compensation: The KBE2H coupling effectively compensates for both angular and parallel shaft misalignment, resulting in smooth and efficient power transmission.
• Axial pluggable design: The coupling's axial pluggability feature enables easy and convenient assembly and disassembly, saving time and effort during maintenance or component replacement.
• Customizable characteristics: The coupling's performance characteristics can be tailored to specific application requirements by using different spider elements. This flexibility allows for optimal functionality in various operating conditions.

Materials:

• Split Hubs: The coupling's hubs are constructed from durable stainless steel, ensuring excellent strength and corrosion resistance. The split hub design enables easy mounting and adjustment of the shafts.
• Spider element: The spider element is constructed from high-quality polyurethane, known for its excellent flexibility, durability, and resistance to wear and tear. It features a hardness of 98 Shore, ensuring reliable power transmission and efficient load distribution.

Bore specifications:

• Bore D1: Ø20mm H7 with keyway
• Bore D2: Ø14mm H7 with keyway
