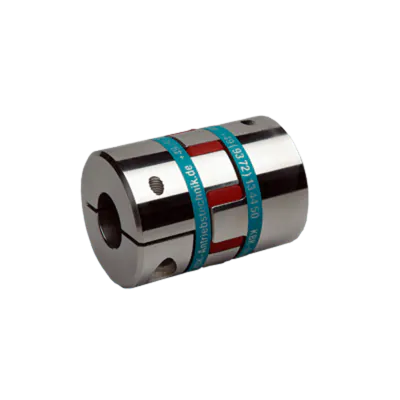

KBE2 14 12 12 servo insert coupling, aluminium and polyurethane
HV71017721The KBE2 size 14 servo insert coupling by KBK is designed to deliver precise, backlash-free torque transmission in demanding servo and positioning applications. With clamp hubs machined from high-quality aluminium, the coupling combines low mass with excellent torsional stiffness, supporting rapid acceleration and deceleration without compromise.
A durable polyurethane spider serves as the elastic element, effectively damping vibrations and compensating for minor misalignments, ensuring smooth, wear-reducing operation even under dynamic loads. Rated for a maximum torque of 10 Nm, it reliably transmits power in precision-driven systems.
This coupling is specified with Ø12 mm H7 bores on both sides (D1 and D2) and an outer diameter of Ø30 mm, making it compact and easy to integrate into tight installations. With an overall length of 35 mm, it fits perfectly into modern servo setups where space optimization is crucial.
Engineered for zero-backlash performance, the KBE2 coupling is the ideal choice for CNC machinery, robotics, and automated systems requiring high positioning accuracy and smooth, vibration-controlled motion.
Made to order
Expected shipment:
More Information
Description

Key features:
- Vibration reduction: The KBE2 coupling is specially designed to reduce vibrations, ensuring smoother and more precise motion in servo motor systems.
- Shaft misalignment compensation: It compensates for shaft misalignment, allowing for improved torque transmission and reducing stress on the motor and connected equipment.
- Axial pluggable and easy assembly: The coupling features an axial pluggable design, allowing for convenient installation and disassembly. The friction-locked clamp hubs ensure secure and reliable coupling assembly.
Materials:
- Hub: The hub is made from aluminum, providing strength, durability, and corrosion resistance.
- Spider element: The spider element is made from polyurethane, a flexible and resilient material that effectively absorbs shocks and accommodates misalignment.
Bore specifications:
- Bore D1: Ø12mm H7
- Bore D2: Ø12mm H7
