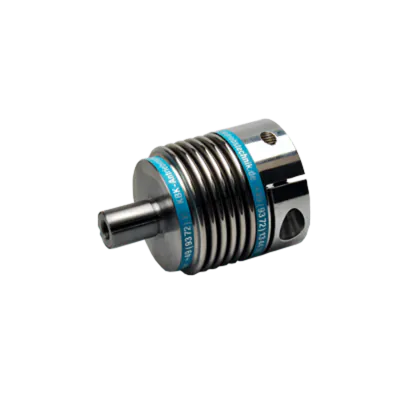

KB8 60 72 28 24 metal bellow coupling, stainless steel, aluminium and steel
HV71015469The KB8 size 60 backlash-free metal bellows coupling with expanding hub, is a precision-engineered coupling designed to provide high torsional stiffness and compensate for shaft misalignment, while minimizing restoring forces. Its innovative design allows for the adoption of hollow shafts, making it an ideal choice for applications where space is limited.
Specifications
Product description
Downloads
€150.00
Made to order
Expected shipment: 21-03-2025
More Information
Material
Stainless steel, aluminum and steel
Length (mm)
72
Max. moment (Nm)
60
Manufacturer
KBK
Coupling size
60
Outer diameter (mm)
Ø66
Bore D1
Ø28mm H7
Bore D2
Ø24mm H7
Description
Key features:
- High torsional stiffness: Ensures efficient power transmission and reduces torsional vibrations.
- Compensation of shaft misalignment: Accommodates angular, parallel, and axial misalignment, enhancing system performance and longevity.
- Low restoring forces: Minimizes the load on connected equipment and reduces wear and tear.
- Compact and space-saving design: Enables seamless integration into systems with limited space.
Specifications:
- Temperature range: -30 °C to +120 °C.
Materials:
- Bellow: Stainless steel: Provides excellent resistance to corrosion, ensuring durability and longevity.
- Hubs: Aluminium: Offers a lightweight yet robust construction, minimizing the overall weight of the coupling.
- Expanding clamps: Steel: Provides reliable and secure clamping force for enhanced coupling performance.
Bore specifications:
- Bore D1: Ø28mm H7
- Bore D2: Ø24mm H7
