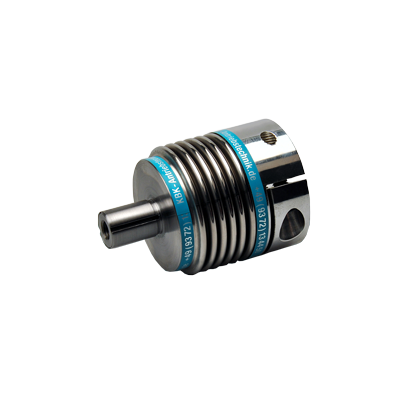

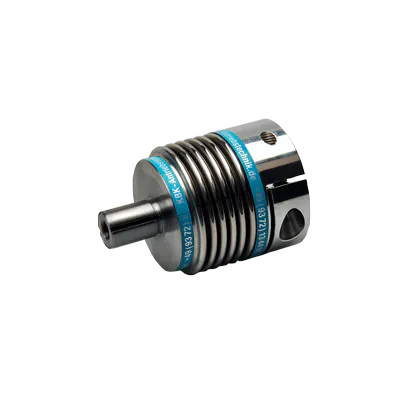

KB8 60 72 24 24 metal bellow coupling, stainless steel, aluminium and steel
HV71015476The KB8 size 60 backlash-free metal bellows coupling with expanding hub is an coupling designed to provide high torsional stiffness and compensate for shaft misalignment with minimal restoring forces. With its unique features and robust construction, this coupling offers reliable performance in a wide range of applications.
Specifications
Product description
Downloads
€149.64
Made to order
Expected shipment: 31-01-2025
More Information
Material
Stainless steel, aluminum and steel
Length (mm)
72
Max. moment (Nm)
60
Manufacturer
KBK
Coupling size
60
Outer diameter (mm)
Ø66
Bore D1
Ø24mm H7
Bore D2
Ø24mm H7
Description
Key features:
- Backlash-free design ensures precise torque transmission and eliminates unwanted movement or play.
- High torsional stiffness enables efficient power transmission, reducing torsional vibrations.
- Compensates for shaft misalignment, accommodating angular, parallel, and axial misalignments effectively.
- Hollow shaft compatibility allows seamless integration with hollow shaft systems, ensuring a compact and space-saving design.
- Provides reliability and durability, with minimal maintenance requirements.
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellows: Stainless steel construction ensures corrosion resistance and longevity.
- Hubs: Aluminium material provides lightweight yet durable hubs for enhanced performance.
- Expanding Clamps: Steel construction delivers strength and reliability for secure shaft connections.
Bore specifications:
- Bore D1: Ø24mm H7
- Bore D2: Ø24mm H7
