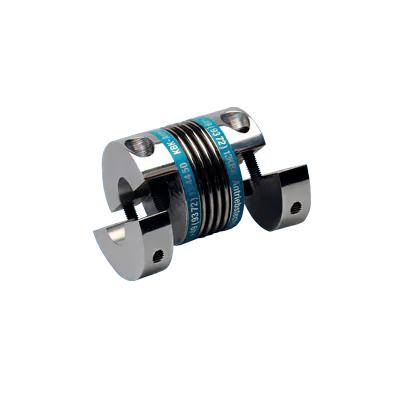

KB4H 60 83 24 25 metal bellow coupling, stainless steel and aluminum
HV71015660The KB4H size 60 backlash-free metal bellows coupling with split hubs, is a highly reliable and efficient coupling designed to provide torsional stiffness and compensate for shaft misalignment with minimal restoring forces. Its split hub design allows for radial assembly, enabling easy mounting and adjustment of shafts before coupling assembly.
Specifications
Product description
Downloads
€184.00
Made to order
Expected shipment: 21-03-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
83
Max. moment (Nm)
60
Manufacturer
KBK
Coupling size
60
Outer diameter (mm)
Ø66
Bore D1
Ø24mm H7
Bore D2
Ø25mm H7
Description
Key features:
- High torsional stiffness: Ensures precise and accurate transmission of torque, minimizing torsional deflection and maintaining system integrity.
- Shaft misalignment compensation: Effectively compensates for shaft misalignment, reducing stress on the system and increasing overall efficiency.
- Split hub design: Allows for convenient radial assembly, facilitating quick and easy shaft mounting and adjustment.
- Ideal for servo drives: Perfectly suited for servo drives in various applications, including testing equipment, automation techniques, and packing machines.
Specifications:
- Temperature range: -30 °C to +120 °C.
Materials:
- Bellows: Made from high-quality stainless steel, ensuring durability, corrosion resistance, and long-term performance.
- Hubs: Constructed from lightweight yet robust aluminum, offering a balance between strength and weight for optimal coupling performance.
Bore specifications:
- Bore D1: Ø24mm H7
- Bore D2: Ø25mm H7
