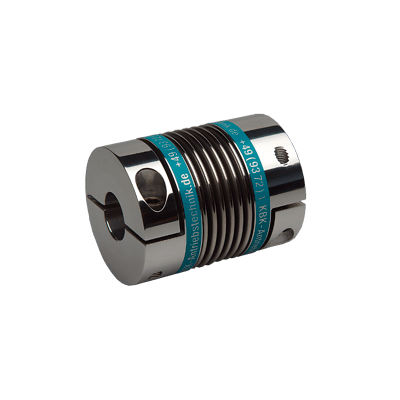

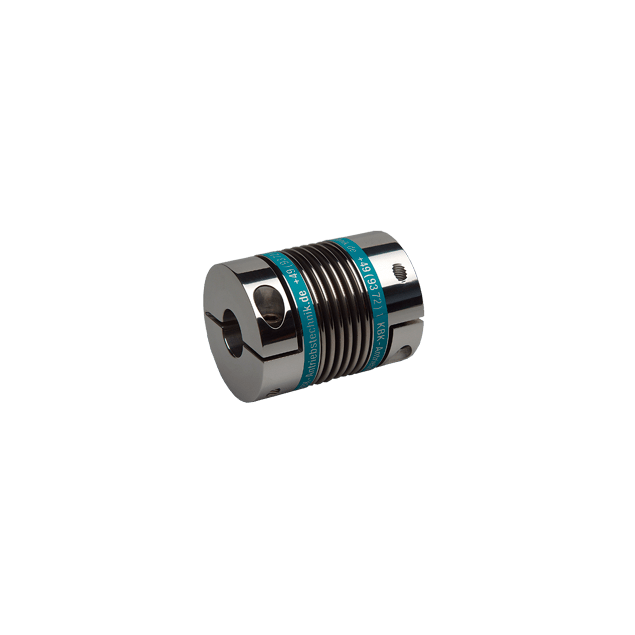

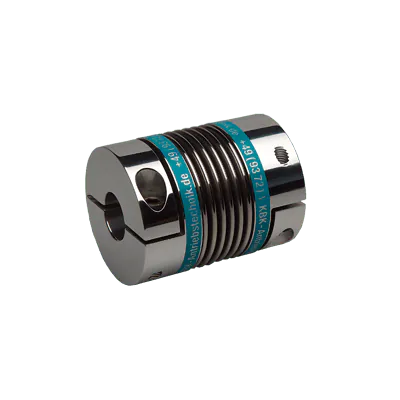

KB4 80 91 24 22 metal bellow coupling
HV71015467The KB4 size 80 backlash-free metal bellows Coupling with Collet Clamps is a high-quality coupling designed to provide exceptional performance and reliability. With its key features and specifications, this coupling is perfect for various applications, including servo motor connections in machine tools, automation techniques, packing machines, and wood working machines.
Specifications
Product description
Downloads
€210.00
Made to order
Expected shipment: 21-03-2025
More Information
Material
Stainless steel and steel
Length (mm)
91
Max. moment (Nm)
80
Manufacturer
KBK
Coupling size
80
Description
Key features:
- High torsional stiffness: The coupling offers excellent torsional stiffness, ensuring accurate and precise power transmission between the connected components.
- Shaft misalignment compensation: It compensates for shaft misalignment while exerting low restoring forces, reducing stress on the system and enhancing overall performance.
- Easy sssembly: The coupling is designed for easy installation and assembly, minimizing downtime and maximizing operational efficiency.
Specifications:
- Temperature range: The coupling can operate efficiently within a temperature range of -30 °C to +120 °C.
Materials:
- Bellows: The metal bellows of the coupling are crafted from stainless steel, offering excellent corrosion resistance and durability.
- Hub: The hub is made from high-quality steel, providing strength and reliability for long-term performance.
Bore specifications:
- Bore D1: Ø24mm H7
- Bore D2: Ø22mm H7
