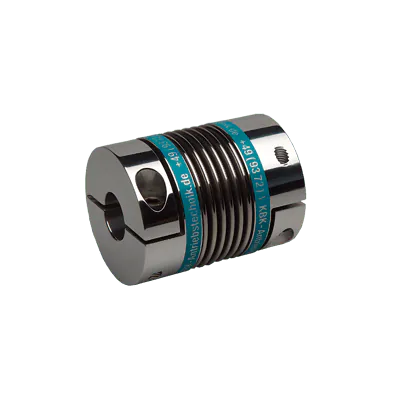

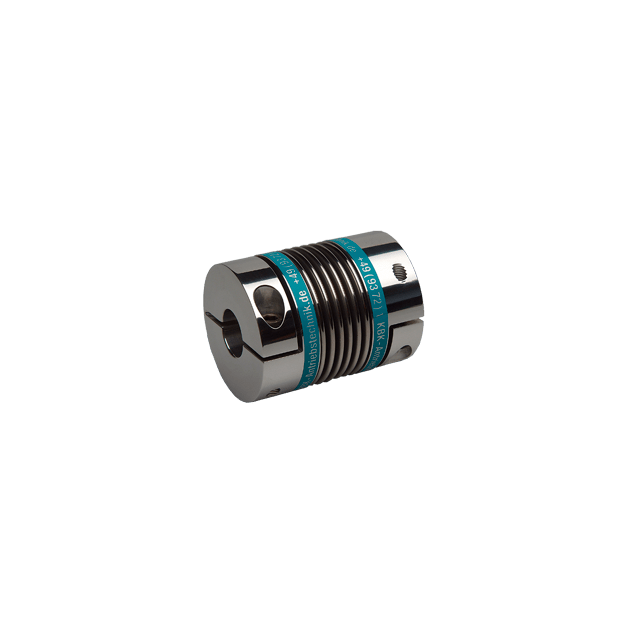

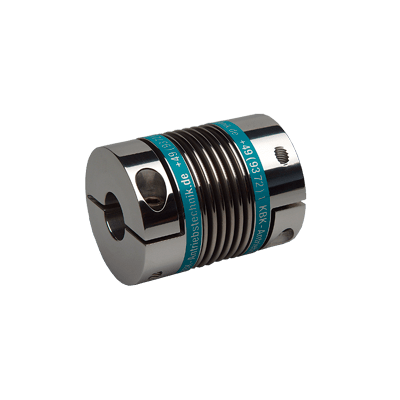

KB4 80 91 22 22 metal bellow coupling
HV71015466The KB4 size 80 backlash-free metal bellows coupling with collet clamps is an coupling solution designed for various applications in the field of machine tools, automation techniques, and packing machines. This coupling offers a range of key features that make it an ideal choice for connecting servo motors, ensuring optimal performance and reliability.
Specifications
Product description
Downloads
€208.71
Made to order
Expected shipment: 23-11-2024
More Information
Material
Stainless steel and steel
Length (mm)
91
Max. moment (Nm)
80
Coupling size
80
Description
Key features:
- High torsional stiffness: The KB4 coupling provides exceptional torsional stiffness, allowing for efficient power transmission and precise motion control.
- Compensation of shaft Misalignment: It effectively compensates for shaft misalignment, ensuring smooth operation and reducing stress on connected components.
- Easy assembly: The coupling is designed for easy and hassle-free installation, saving valuable time during assembly.
Specifications:
- Temperature range: The coupling can operate in temperatures ranging from -30°C to +120°C
Materials:
- Bellows: The bellows of the coupling are made from stainless steel, ensuring excellent corrosion resistance and durability.
- Hub: The hub is constructed from steel, offering high strength and reliability to withstand demanding operational conditions.
Bore specifications:
- Bore D1: Ø22mm H7
- Bore D2: Ø22mm H7
