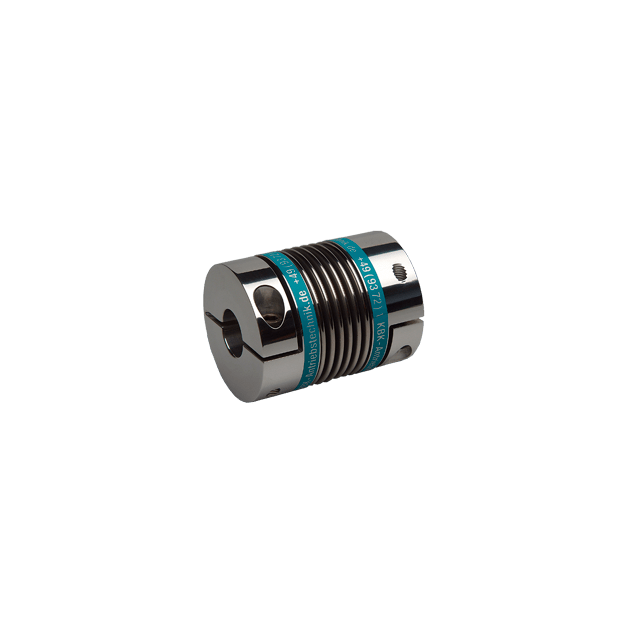

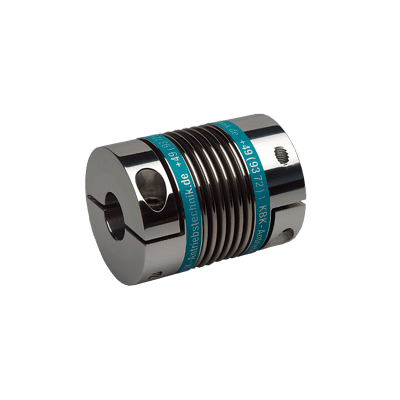

KB4 30 65 N12 N20 metal bellow coupling, stainless steel
HV71015465
Specifications
Product description
Downloads
€142.62
Made to order
Expected shipment: 06-12-2024
More Information
Material
Stainless steel
Length (mm)
65
Max. moment (Nm)
56
Coupling size
30
Description
Key features:
- High torsional stiffness: The KB4 coupling offers torsional stiffness, ensuring precise and accurate power transmission between servo motors and other components.
- Shaft misalignment compensation: It effectively compensates for shaft misalignment, minimizing the risk of mechanical damage and maximizing the lifespan of connected equipment.
- Easy assembly: The coupling's design allows for easy and hassle-free installation, saving time and effort during the assembly process.
Specifications:
- Temperature range: The coupling can operate in temperatures ranging from -30 °C to +120°C
Materials:
- Bellows: The bellows component is crafted from high-quality stainless steel, ensuring durability, corrosion resistance, and longevity.
- Hub: The hub is also made from stainless steel, providing strength and reliability in demanding applications.
Bore specifications:
- Bore D1: Ø12mm H7 with keyway
- Bore D2: Ø20mm H7 with keyway
