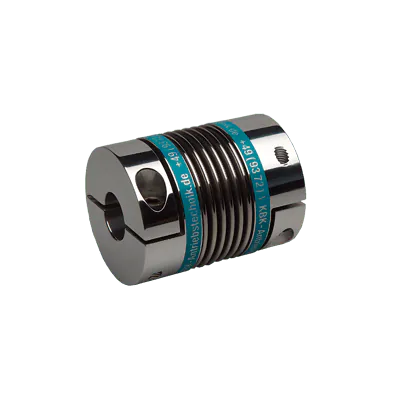

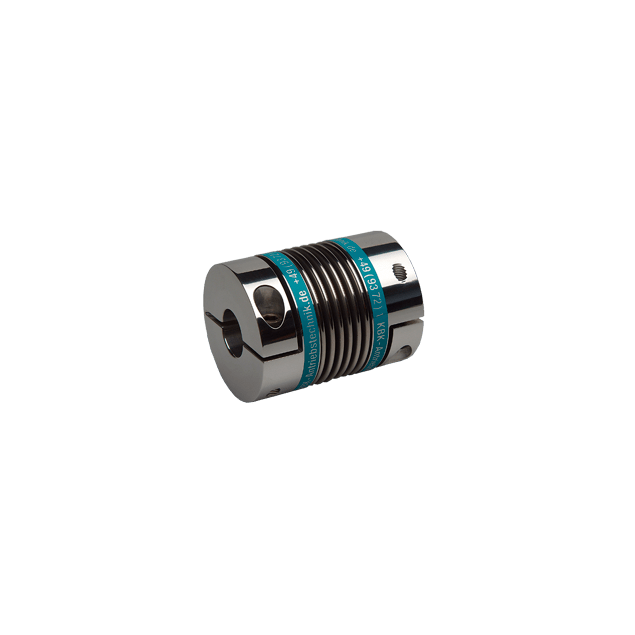

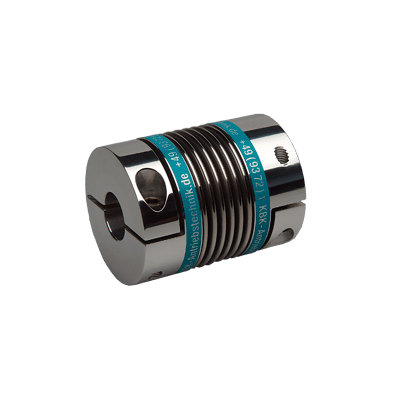

KB4 30 65 N12 N12 metal bellow coupling, stainless steel
HV71015460The KB4 size 30 backlash-free stainless steel metal bellows coupling with collet clamps, is a advanced coupling designed for precision and reliability. This coupling offers a range of key features that make it an ideal choice for various applications, including connecting servo motors in machine tools, automation techniques, packing machines, and woodworking machines.
Specifications
Product description
Downloads
€144.00
Made to order
Expected shipment: 21-03-2025
More Information
Material
Stainless steel
Length (mm)
65
Max. moment (Nm)
30
Manufacturer
KBK
Coupling size
30
Description
Key features:
- High torsional stiffness: The KB4 coupling provides excellent torsional stiffness, ensuring optimal power transmission and precise motion control.
- Shaft misalignment compensation: With the ability to compensate for shaft misalignment, this coupling ensures smooth operation and reduced stress on connected components.
- Easy assembly: The KB4 coupling is designed for easy and hassle-free assembly, saving time and effort during installation.
Specifications:
- Temperature range: The coupling can operate within a temperature range of -30 °C to +120 °C
Materials:
- Bellows Material: Stainless steel for enhanced durability and corrosion resistance
- Hub Material: Stainless steel for optimal strength and longevity
Bore specifications:
- Bore D1: Ø12mm H7 with keyway
- Bore D2: Ø12mm H7 with keyway
