KB4 18 63 14 20 metal bellow coupling

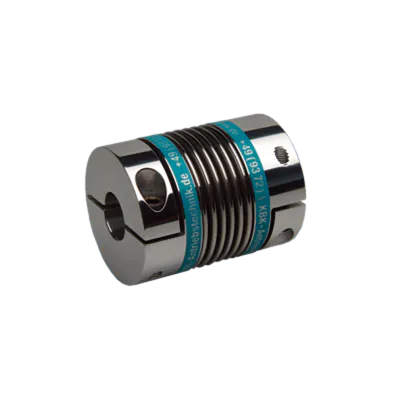

HV71015446The KB4 size 18 backlash-free metal bellows coupling with collet clamps is a high-performance coupling designed to provide torsional stiffness, shaft misalignment compensation, and easy assembly. With its features, this coupling is ideal for connecting servo motors in various applications.
Specifications
Product description
Downloads
€111.83
Made to order
Expected shipment: 06-01-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
63
Max. moment (Nm)
18
Manufacturer
KBK
Coupling size
18
Description
Key features:
- High torsional stiffness for precise torque transmission and reduced backlash
- Compensation of shaft misalignment with low restoring forces, ensuring smooth operation
- Easy assembly, allowing for quick and hassle-free installation
- Reliable connection between servo motors and other components, ensuring optimal performance
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellows: Made from stainless steel, ensuring durability, corrosion resistance, and longevity
- Hub: Constructed from aluminum, offering a lightweight yet robust design for efficient coupling performance
Bore specifications:
- Bore D1: Ø14mm H7
- Bore D2: Ø20mm H7
