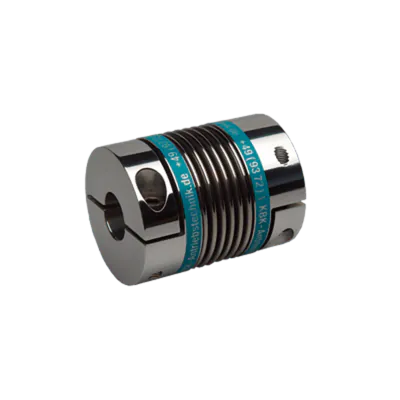

KB4 18-63 Ø12H7 Ø15H7 metal bellow coupling, stainless steel and aluminium
HV71015444The KB4 size 18 backlash-free metal bellows coupling with clamping hub, is a high-performance coupling designed to meet the demands of precision applications. This coupling offers torsional stiffness, efficient compensation for shaft misalignment, and effortless assembly, making it the ideal choice for various industries.
Specifications
Product description
Downloads
€108.00
Made to order
Expected shipment: 24-03-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
63
Max. moment (Nm)
18
Manufacturer
KBK
Coupling size
18
Outer diameter (mm)
Ø45
Bore D1
Ø12mm H7
Bore D2
Ø15mm H7
Description
Key features:
- High torsional stiffness for reliable power transmission
- Backlash-free design ensures precise motion control
- Shaft misalignment compensation with low restoring forces
- Easy and convenient assembly process
Specifications:
- Temperature range: -30°C to +120°C
Materials:
- Bellows: Constructed from stainless steel, ensuring durability, corrosion resistance, and excellent load-bearing capacity
- Hubs: Made from lightweight and robust aluminum, offering strength and reliability while reducing overall weight
Bore specifications:
- Bore D1: Ø12mm H7
- Bore D2: Ø15mm H7
