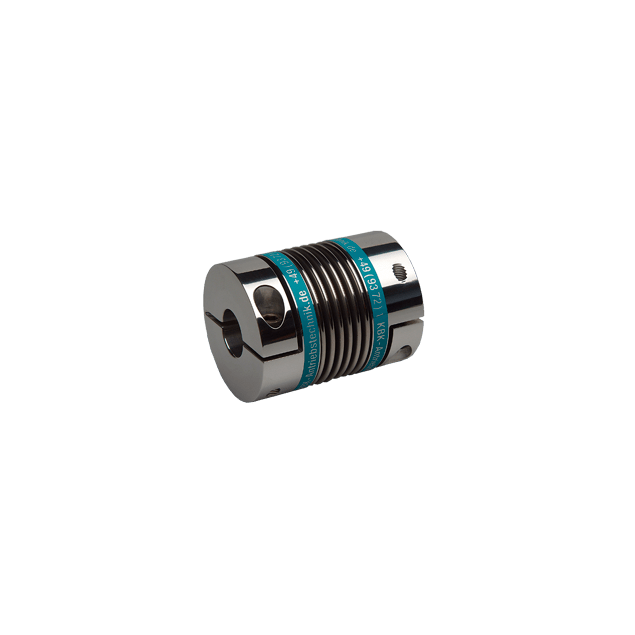

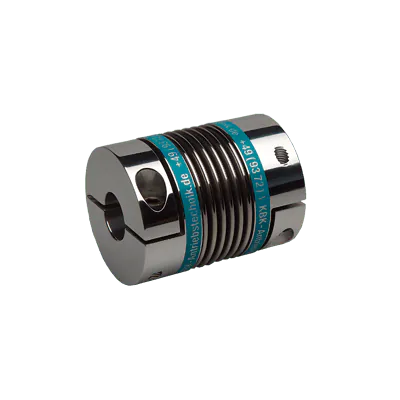

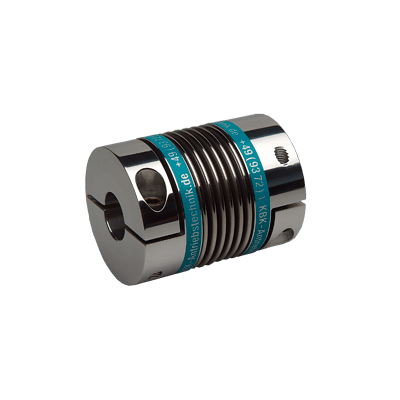

KB4 150 102 22 27 metal bellow coupling
HV71015468The KB4 size 150 backlash-free metal bellows coupling with collet clamps is a high-performance coupling designed for precision applications. With its key features, specifications and materials, this coupling offers performance and reliability in various industrial settings.
Specifications
Product description
Downloads
€251.20
Made to order
Expected shipment: 23-11-2024
More Information
Material
Stainless steel and aluminium
Length (mm)
102
Max. moment (Nm)
150
Coupling size
150
Description
Key features:
- High torsional stiffness: Provides torque transmission and ensures precise motion control.
- Compensation of shaft misalignment: Effectively compensates for misalignment while exerting low restoring forces, resulting in smooth operation.
- Easy assembly: Designed for hassle-free installation, saving valuable time and effort during setup.
Specifications:
- Temperature range: Operates reliably in temperatures ranging from -30 °C to +120 °C.
Materials:
- Bellows: Constructed from durable stainless steel, ensuring high strength, corrosion resistance, and longevity.
- Hub: Made of lightweight and robust aluminum, offering excellent balance between strength and weight.
Bore specifications:
- Bore D1: Ø22mm H7 with keyway
- Bore D2: Ø27mm H7 with keyway
