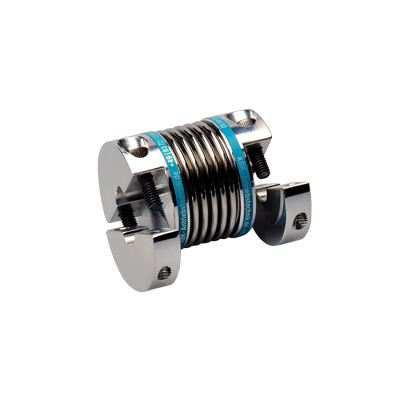

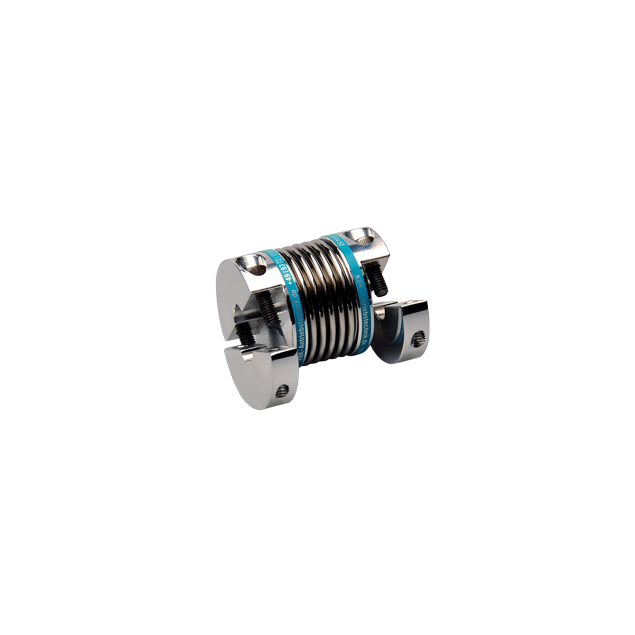

KB2H 45 50 9.7 12 miniature metal bellow coupling, stainless steel and aluminium
HV71015462The KB2H size 45 backlash-free miniature metal bellows coupling with split hubs, is a high-performance coupling designed to provide torsional stiffness and compensate for shaft misalignment with minimal restoring forces. With its split hub design, this coupling allows for easy radial assembly, enabling shafts to be mounted and adjusted before coupling assembly.
Specifications
Product description
Downloads
€56.70
Made to order
Expected shipment: 05-03-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
50
Max. moment (Nm)
4.5
Manufacturer
KBK
Coupling size
45
Outer diameter (mm)
Ø32,5
Bore D1
Ø9,7mm H7
Bore D2
Ø12mm H7
Description
Key features:
- High torsional stiffness: Ensures precise torque transmission and minimizes backlash.
- Compensation of shaft misalignment: Reduces wear and extends the lifespan of connected equipment.
- Split hub design: Enables convenient radial assembly and adjustment of shafts prior to coupling assembly.
- Ideal for servo drives: Perfectly suited for use in testing equipment, automation techniques, and packing machines.
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellow: Stainless steel: Offers durability, corrosion resistance, and reliability.
- Hub: Aluminum: Provides a lightweight yet sturdy construction for optimal performance.
Bore specifications:
- Bore D1: Ø9.7mm H7
- Bore D2: Ø12mm H7
