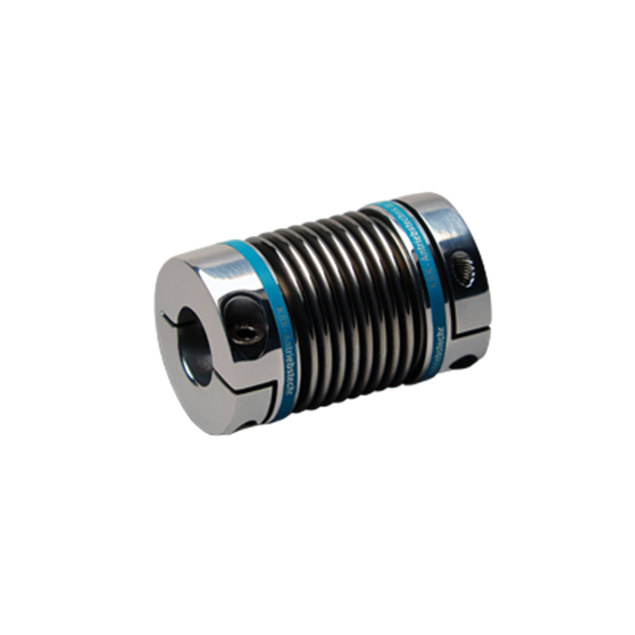

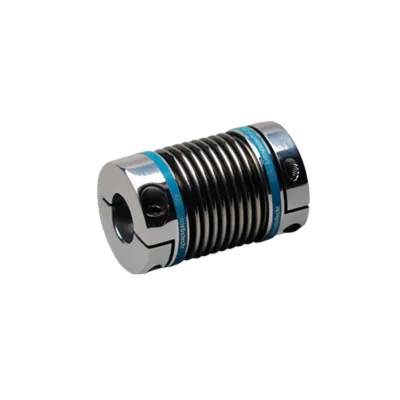

KB2 45 50 14 14 miniature metal bellow coupling, stainless steel and aluminium
HV71015283SSThe KB2 size 45 backlash-free miniature stainless steel metal bellows coupling with clamping hub, is a precision-engineered coupling designed for optimal performance and ease of installation. This coupling combines functionality, cost-effectiveness, and high torsional stiffness, making it an ideal choice for various applications such as encoders, tachometers, potentiometers, servo drives, and NC systems.
Specifications
Product description
Downloads
€175.20
Made to order
Expected shipment: 23-11-2024
More Information
Material
Stainless steel
Length (mm)
50
Max. moment (Nm)
4.5
Coupling size
45
Bore D1
Ø14mm H7
Bore D2
Ø14mm H7
Product type
Miniature metal bellow coupling
Description
Key features:
- Quick and easy mounting: The friction-locked clamp hubs enable effortless assembly, ensuring a secure and reliable connection.
- Backlash-free operation: The bellows design eliminates backlash, providing precise and accurate power transmission for enhanced performance.
- Shaft misalignment compensation: The coupling compensates for shaft misalignment with low restoring forces, reducing wear and extending the lifespan of connected components.
- Affordable without compromising quality: This coupling offers value for its high-quality construction and reliable functionality.
Specifications:
- Temperature range: -30 °C to +120°C
Materials:
- Bellows: Made from high-grade stainless steel, providing durability and corrosion resistance.
- Hubs: Constructed from stainless steel, ensuring robustness and longevity.
Bore specifications:
- Bore D1: Ø14mm H7
- Bore D2: Ø14mm H7
