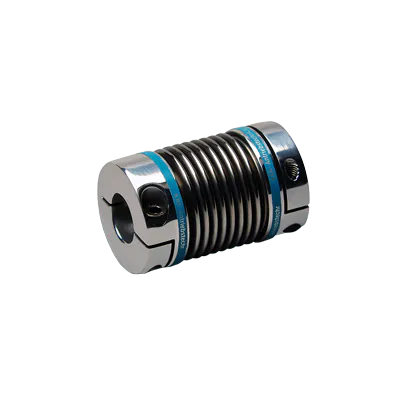

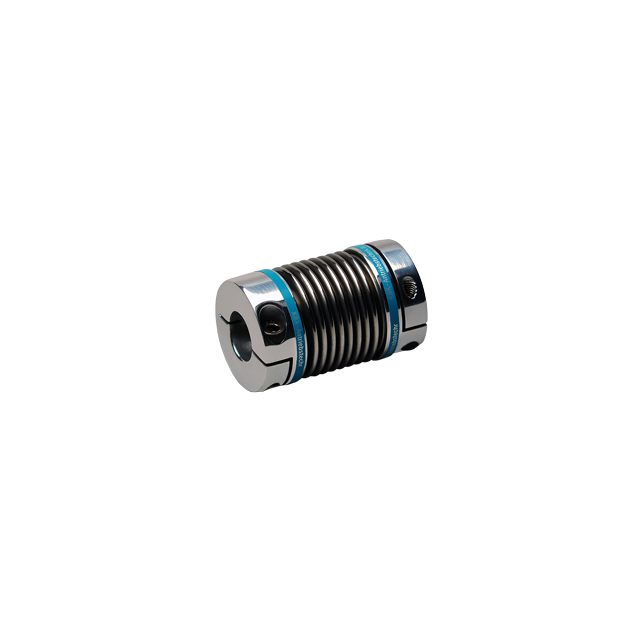

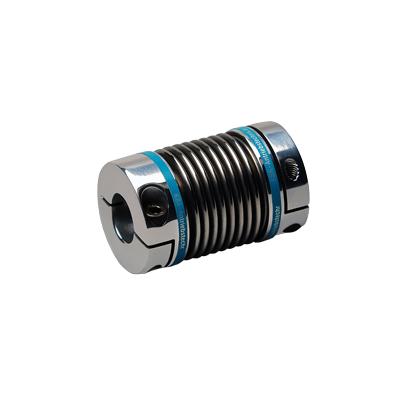

KB2 45 50 14 14 miniature metal bellow coupling, stainless steel and aluminium
HV71015283The KB2 size 45 backlash-free miniature metal bellows coupling with clamping hub, is a highly efficient and reliable coupling designed for various applications. This coupling offers performance, ease of assembly, and cost-effectiveness, making it an ideal choice for a wide range of industrial needs.
Made to order
Expected shipment: 07-03-2025
More Information
Description

Key features:
- Quick mounting: The KB2 coupling features a friction-locked clamp hub design, allowing for easy and swift assembly, reducing downtime during installation or maintenance.
- High torsional stiffness: With its sturdy construction and precision engineering, this coupling provides torsional stiffness, ensuring reliable power transmission and minimal power loss.
- Shaft misalignment compensation: The bellows design allows for compensating shaft misalignments while exerting low restoring forces, resulting in reduced stress on the connected components and improved overall system performance.
- Versatile applications: The KB2 coupling is suitable for a variety of applications, including encoders, tachometers, potentiometers, servo drives, and NC systems, providing a versatile solution for different industrial needs.
Specifications:
- Temperature range: -30 °C to +120°C
Materials:
- Bellows: Made from stainless steel, offering corrosion resistance, durability, and fatigue strength for long-lasting performance.
- Hub: Constructed from aluminum, providing a lightweight yet robust structure that ensures reliable power transmission while minimizing the overall weight of the coupling.
Bore specifications:
- Bore D1: Ø14mm H7
- Bore D2: Ø14mm H7
