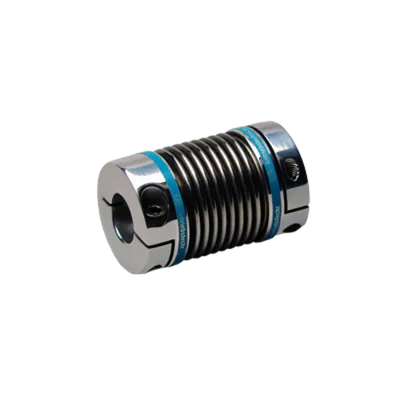

KB2 45 50 11 9 miniature metal bellow coupling, stainless steel and aluminium
HV71015280The KB2 size 45 backlash-free miniature stainless steel metal bellows coupling with clamping hub, is a high-performance coupling designed to provide functionality and reliability, at an affordable price. With its advanced features and robust construction, this coupling is an ideal choice for a wide range of applications, including encoders, tachometers, potentiometers, servo drives, and NC systems
Made to order
Expected shipment: 14-03-2025
More Information
Description

Key features:
- Quick mounting: The KB2 coupling enables easy and convenient installation, saving valuable time during assembly.
- High torsional stiffness: This coupling offers torsional rigidity, ensuring precise power transmission without any backlash or loss of energy.
- Shaft misalignment compensation: With its ability to compensate for shaft misalignment, the KB2 coupling minimizes stress on the system components, enhancing overall performance and longevity.
- Friction-locked clamp hubs: The coupling features friction-locked clamp hubs, allowing for secure and reliable connection between the components.
Specifications:
- Temperature range: The coupling can operate in temperatures ranging from -30 °C to +120 °C
Materials:
- Bellows: The bellows are crafted from high-quality stainless steel, ensuring durability and corrosion resistance.
- Hub: The hub is also made from stainless steel, providing excellent strength and stability.
Bore specifications:
- Bore D1: Ø11mm H7
- Bore D2: Ø9mm H7
