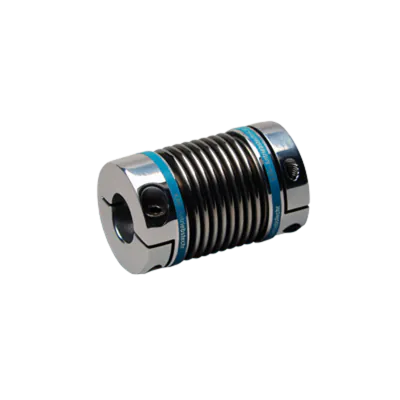

KB2 45 50 10 6 miniature metal bellow coupling, stainless steel and aluminium
HV71015275The KB2 size 45 backlash-free miniature stainless steel metal bellows coupling with clamping hub offers performance and reliability. Its high torsional stiffness ensures precise power transmission, while the compensation of shaft misalignment minimizes stress on the system. The friction-locked clamp hubs enable quick and hassle-free assembly, making it an ideal choice for various applications such as encoders, tachometers, potentiometers, servo drives, and NC systems.
Made to order
Expected shipment: 05-03-2025
More Information
Description
Key Features:
- Backlash-free coupling design for precise and reliable performance
- High torsional stiffness for accurate power transmission
- Quick and easy mounting with friction-locked clamp hubs
- Compensation of shaft misalignment with low restoring forces
- Affordable price without compromising on quality
- Suitable for a wide range of applications including encoders, tachometers, potentiometers, servo drives, and NC systems
Specifications:
- Temperature Range: -30 °C to +120°C
Materials:
- Bellows: Stainless steel
- Hubs: Stainless steel
Bore Specifications:
- Bore D1: Ø10mm H7
- Bore D2: Ø6mm H7
