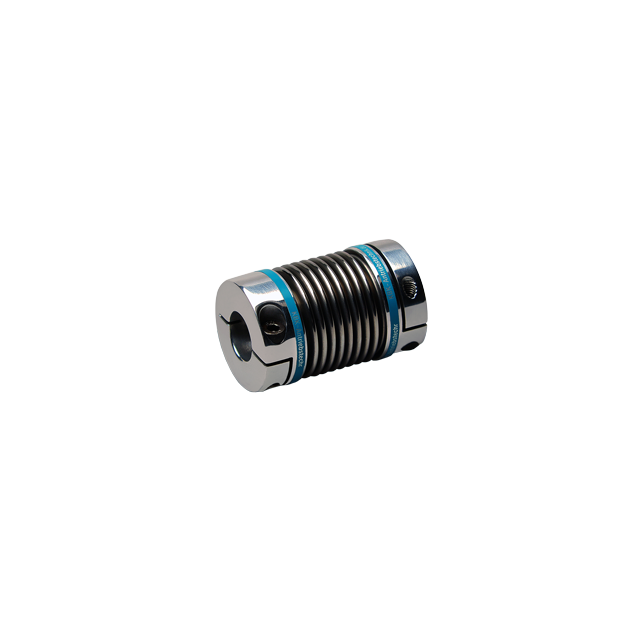

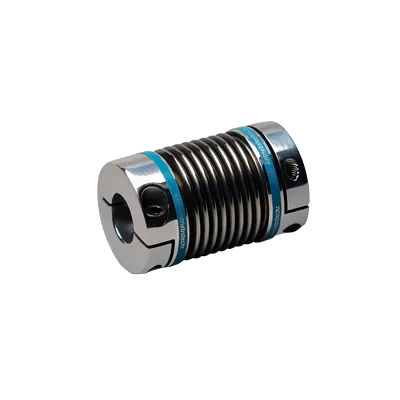

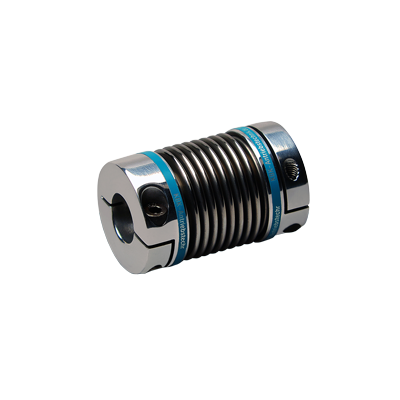

KB2 45 41 11 11 miniature metal bellow coupling, stainless steel and aluminium
HV71015461The KB2 size 45 backlash-free miniature metal bellows coupling with clamping hub, is a solution that combines quick mounting, high performance, and affordability. Designed to deliver torsional stiffness and compensate for shaft misalignment, this coupling offers functionality at low restoring forces. It boasts easy assembly with friction-locked clamp hubs.
Specifications
Product description
Downloads
€56.70
Made to order
Expected shipment: 24-11-2024
More Information
Material
Stainless steel
Length (mm)
41
Max. moment (Nm)
4.5
Coupling size
45
Bore D1
Ø11mm H7
Bore D2
Ø11mm H7
Product type
Miniature metal bellow coupling
Description
Key features:
- Backlash-free design ensures precise transmission of torque
- High torsional stiffness for accurate motion control
- Compensates for shaft misalignment with low restoring forces
- Friction-locked clamp hubs for easy and secure assembly
- Suitable for encoders, tachometers, potentiometers, servo drives, NC systems, and more
Specifications:
- Temperature range: -30°C to +120°C
Materials:
- Bellows: Stainless steel for durability and corrosion resistance
- Hub: Aluminum for lightweight construction
Bore specifications:
- Bore D1: Ø11mm H7
- Bore D2: Ø11mm H7
