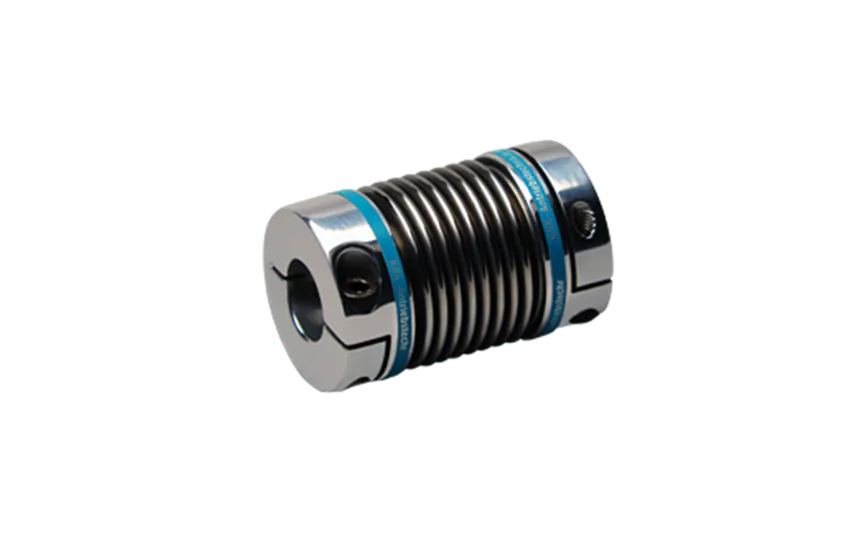

KB2 20 32 6 6 miniature metal bellow coupling, stainless steel and aluminium
HV71015248The KB2 size 20 backlash-free miniature stainless steel metal bellows coupling with clamping hub is a high-performance coupling designed for various precision applications. This coupling offers performance, ease of installation, and affordability, making it an ideal choice for a wide range of industries.
Specifications
Product description
Downloads
€214.88
Made to order
Expected shipment: 23-11-2024
More Information
Material
Stainless steel
Length (mm)
32
Max. moment (Nm)
2
Coupling size
20
Bore D1
Ø6mm H7
Bore D2
Ø6mm H7
Description
Key features:
- Quick mounting: The coupling features friction-locked clamp hubs that allow for easy and efficient assembly, reducing installation time and effort.
- High torsional stiffness: With its robust construction, this coupling provides excellent torsional stiffness, ensuring precise power transmission and minimizing backlash.
- Shaft misalignment compensation: The bellows design of the coupling enables compensation for shaft misalignment, resulting in smooth operation and reduced stress on connected components.
- Suitable for various applications: The KB2 coupling is perfectly suited for use with encoders, tachometers, potentiometers, servo drives, and NC systems, making it versatile for different industrial needs.
Specifications:
- Temperature range: The coupling can operate effectively in temperatures ranging from -30 °C to +120 °C.
Materials:
- Bellows: The bellows portion of the coupling is constructed from stainless steel, offering durability, corrosion resistance, and fatigue strength.
- Hub: The hubs of the coupling are also made from stainless steel, ensuring a reliable and robust connection between the shafts.
Bore pecifications:
- Bore D1: Ø6mm H7
- Bore D2: Ø6mm H7
