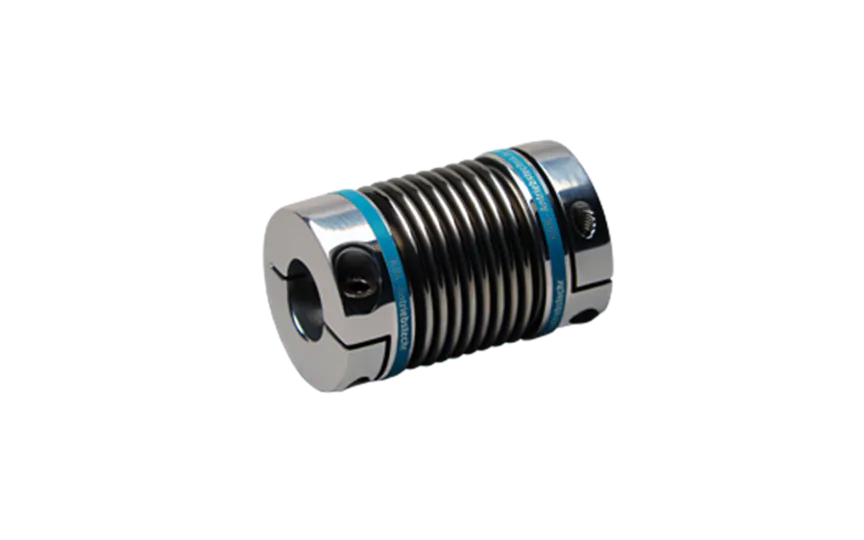

KB2 20 32 10 10 miniature metal bellow coupling, stainless steel and aluminium
HV71015251The KB2 size 20 backlash-free miniature metal bellows coupling with clamping hub is designed to offer performance, easy assembly, and cost-effectiveness. This coupling is the ideal solution for applications requiring high torsional stiffness and compensation of shaft misalignment at low restoring forces, making it suitable for use with encoders, tachometers, potentiometers, servo drives, and NC systems.
Made to order
Expected shipment: 31-01-2025
More Information
Description
Key features:
- Backlash-free design ensures precise and accurate torque transmission
- Quick mounting for efficient installation
- High torsional stiffness for optimal performance
- Compensation of shaft misalignment reduces stress on the system
- Friction-locked clamp hubs enable easy assembly
Specifications:
- Temperature range: -30 °C to +120°C
Materials:
- Bellows: Stainless steel construction ensures durability and corrosion resistance
- Hub: Aluminium hub provides lightweight yet robust support for the coupling
Specifications:
- Bore D1: Ø10mm H7
- Bore D2: Ø10mm H7
