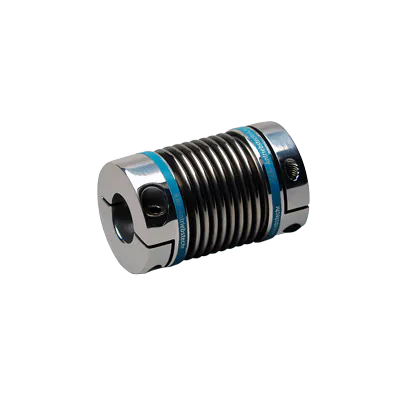

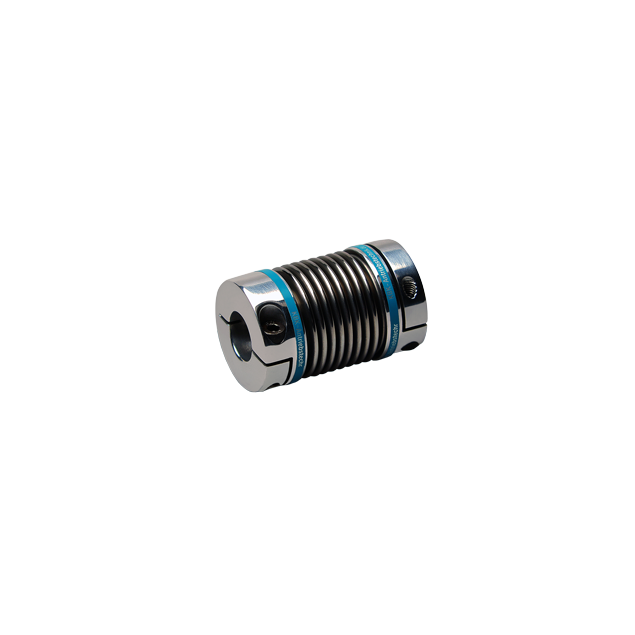

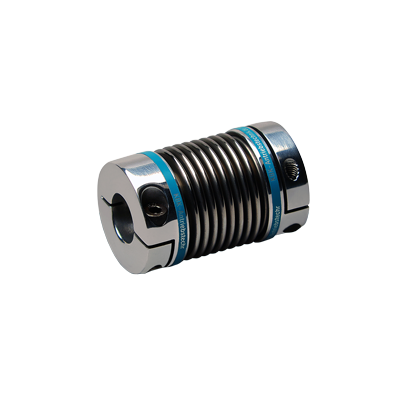

KB2 15 31 6 6 miniature metal bellow coupling, stainless steel and aluminium
HV71015245The KB2 size 15 backlash-free miniature metal bellows coupling with clamping hub is a high-performance coupling that combines quick mounting, performance, and affordability. It is an ideal choice for encoders, tachometers, potentiometers, servo drives, and NC systems.
Specifications
Product description
Downloads
€40.35
Made to order
Expected shipment: 05-03-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
31
Max. moment (Nm)
1.5
Manufacturer
KBK
Coupling size
15
Outer diameter (mm)
Ø20
Bore D1
Ø6mm H7
Bore D2
Ø6mm H7
Description
Key features:
- Backlash-free design ensures accurate and reliable transmission of rotational motion.
- High torsional stiffness for efficient power transfer and enhanced system performance.
- Quick and easy mounting with friction-locked clamp hubs, facilitating efficient assembly and maintenance.
- Shaft misalignment compensation capability, reducing stress on connected components.
- Suitable for a variety of applications, including encoders, tachometers, potentiometers, servo drives, and NC systems
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellows: Made from stainless steel, offering exceptional durability and corrosion resistance.
- Hub: Constructed from aluminum, providing a lightweight yet sturdy coupling hub.
Bore specifications:
- Bore D1: Ø6mm H7
- Bore D2: Ø6mm H7
