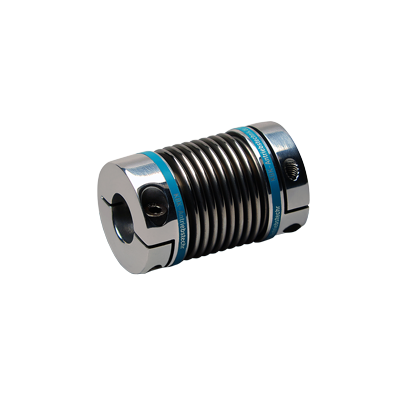

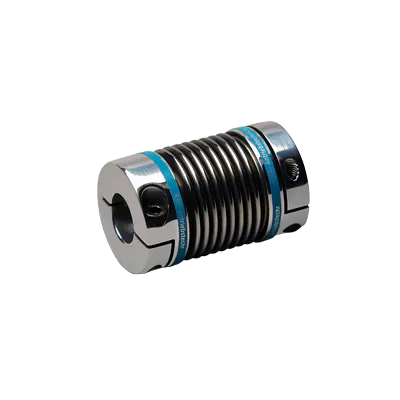

KB2 15 31 6 10 miniature metal bellow coupling, stainless steel and aluminium
HV71015246The KB2 size 15 backlash-free miniature metal bellows coupling with clamping hub offers performance and ease of use at an affordable price. This coupling is an ideal choice for a wide range of applications including encoders, tachometers, potentiometers, servo drives, and NC systems.
Specifications
Product description
Downloads
€42.00
Made to order
Expected shipment: 21-05-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
31
Max. moment (Nm)
1.5
Manufacturer
KBK
Coupling size
15
Outer diameter (mm)
Ø20
Bore D1
Ø6mm H7
Bore D2
Ø10mm H7
Description
Key features:
- Quick and easy mounting for efficient assembly
- High torsional stiffness ensures precise and reliable performance
- Shaft misalignment compensation minimizes stress and wear on connected components
- Friction-locked clamp hubs provide a secure and reliable connection
- Suitable for use with encoders, tachometers, potentiometers, servo drives, and NC systems
Specifications:
- Temperature range: -30 °C to +120°C, ensuring stable operation in a wide range of environments
Materials:
- Bellows: Stainless steel, offering durability, corrosion resistance, and long-term reliability
- Hub: Aluminium, combining lightweight construction with sufficient strength for reliable coupling performance
Bore specifications:
- Bore D1: Ø6mm H7
- Bore D2: Ø10mm H7
