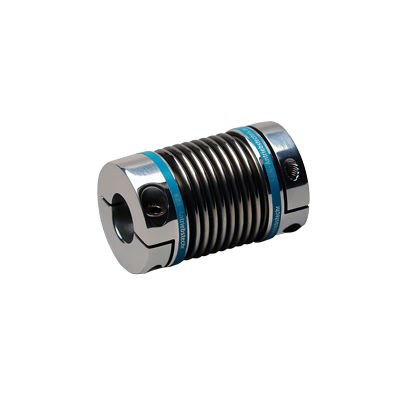

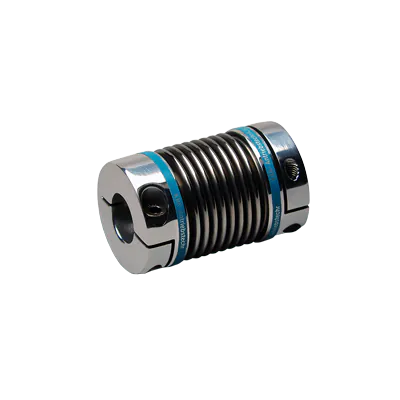

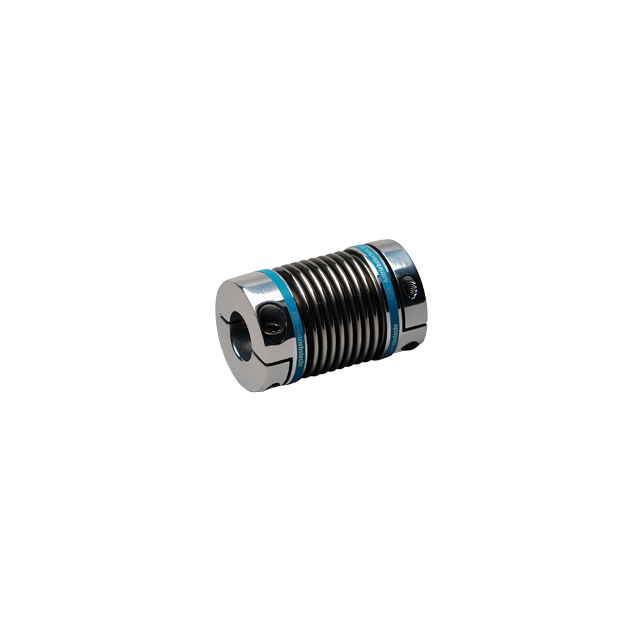

KB2 15 31 5 5 miniature metal bellow coupling, stainless steel and aluminium
HV71015244The KB2 size 15 backlash-free miniature metal bellows coupling with clamping hub is a high-performance coupling designed for various applications such as encoders, tachometers, potentiometers, servo drives, and NC systems. This coupling offers functionality, quick mounting, and affordability, making it an excellent choice for precision applications.
Specifications
Product description
Downloads
€40.35
Made to order
Expected shipment: 05-03-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
31
Max. moment (Nm)
1.5
Manufacturer
KBK
Coupling size
15
Outer diameter (mm)
Ø20
Bore D1
Ø5mm H7
Bore D2
Ø5mm H7
Description
Key features:
- High torsional stiffness for precise motion transmission
- Backlash-free design ensures accurate positioning
- Compensates for shaft misalignment with low restoring forces
- Friction-locked clamp hubs allow for easy assembly
- Suitable for applications requiring high precision and reliability
Specifications:
- Temperature range: The coupling is designed to operate within a temperature range of -30 °C to +120°C.
Materials:
- Bellows: The bellows component is made from stainless steel, ensuring durability and resistance to corrosion.
- Hubs: The coupling's hubs are crafted from aluminum, providing strength and stability while keeping the overall weight low.
Bore specifications:
- Bore D1: Ø5mm H7
- Bore D2: Ø5mm H7
