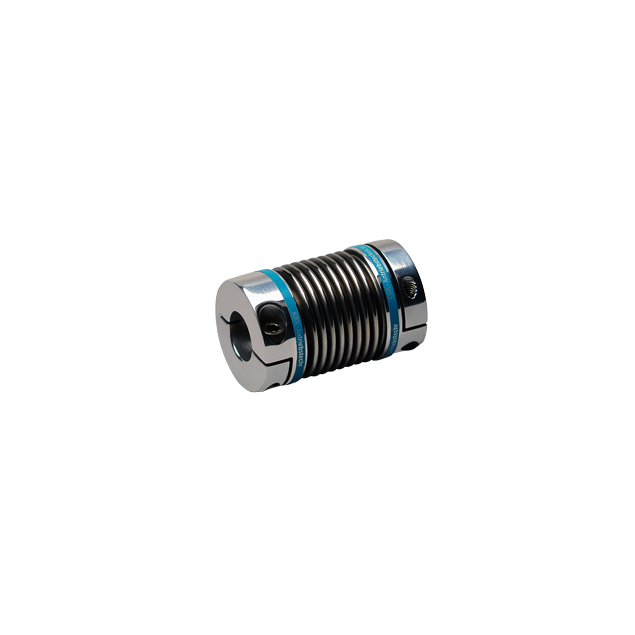

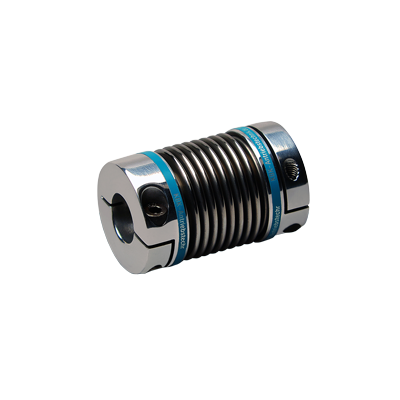

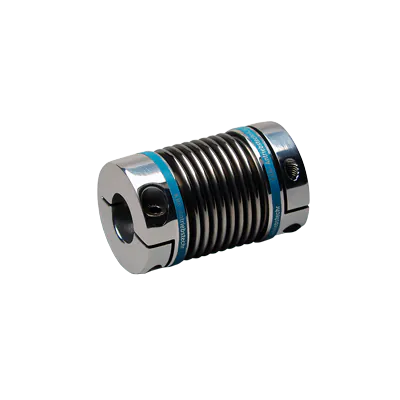

KB2 100 57 11 12 miniature metal bellow coupling, stainless steel and aluminium
HV71015291The KB2 size 100 backlash-free miniature metal bellows coupling with clamping hub is a high-performance coupling designed to provide functionality and reliability, while maintaining an affordable price. This coupling is specifically engineered to offer quick mounting and superior performance, making it an ideal choice for a wide range of applications including encoders, tachometers, potentiometers, servo drives, and NC systems
Made to order
Expected shipment: 31-01-2025
More Information
Description
Key features:
- High torsional stiffness ensures precise and efficient power transmission.
- Excellent compensation of shaft misalignment at low restoring forces for enhanced operational stability.
- Friction-locked clamp hubs enable easy assembly, reducing installation time and effort.
- Backlash-free design ensures accurate positioning and eliminates power loss.
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellows: Made from high-quality stainless steel, ensuring exceptional durability and resistance to corrosion.
- Hubs: Crafted from stainless steel, guaranteeing robustness and longevity.
Bore specifications:
- Bore D1: Ø11mm H7
- Bore D2: Ø12mm H7
