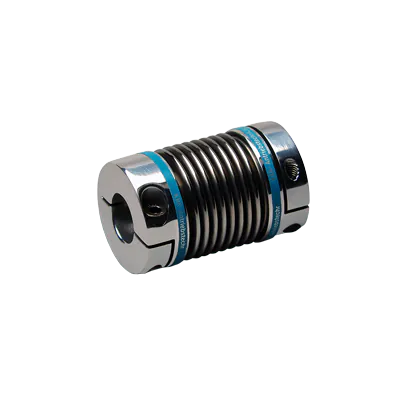

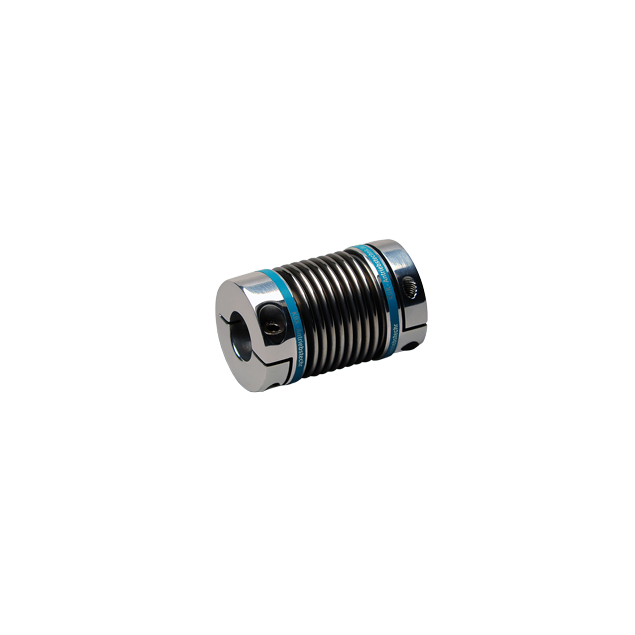

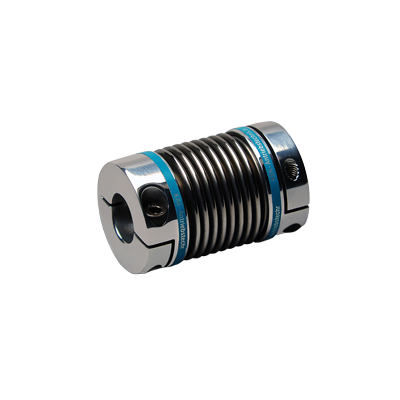

KB2 10 26 6 6 miniature metal bellow coupling, stainless steel and aluminium

HV71015220

The KB2 size 10 backlash-free miniature metal bellows coupling with with clamping hub, is a high-performance coupling that combines quick mounting, functionality, and affordability. Its friction-locked clamp hubs ensure easy assembly, making it a versatile choice for various applications such as encoders, tachometers, potentiometers, servo drives, and NC systems.

€41.00
Excluded taxes and delivery costs

Made to order

Expected shipment:

Loading...
Estimated Shipping:

Description

Key features:

  • Backlash-free coupling design for precise motion transmission
  • High torsional stiffness for enhanced performance
  • Compensation of shaft misalignment with low restoring forces
  • Quick and easy assembly with friction-locked clamp hubs
  • Affordable price without compromising quality

Specifications:

  • Temperature range: -30 °C to +120°C

Materials:

  • Bellows: Stainless steel for durability and corrosion resistance
  • Hub: Aluminum for lightweight construction and excellent mechanical properties

Bore specifications:

  • Bore D1: Ø6mm H7
  • Bore D2: Ø6mm H7

Specifications

Material
Stainless steel and aluminum
Length (mm)
26
Max. moment (Nm)
1
Manufacturer
KBK
Coupling size
10
Outer diameter (mm)
Ø15,5
Bore D1
Ø6mm H7
Bore D2
Ø6mm H7

Downloads

3dfile 3dfile stp dataSheet dataSheet pdf brochure brochure pdf installationManual installationManual pdf

Foreign trade

HS-Code
84836020
ERP net weight (Kg)
0.09
Country of origin
DEU
