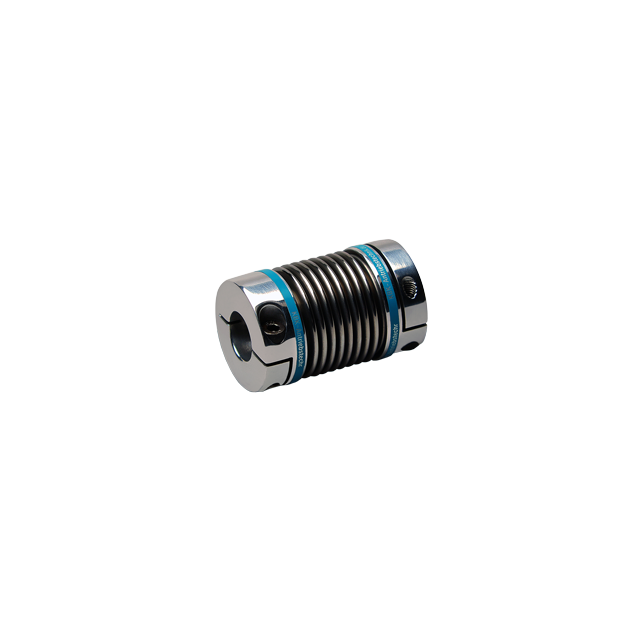

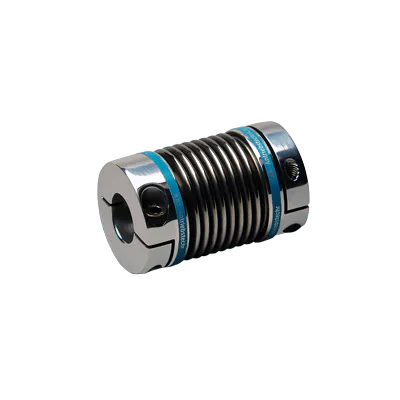

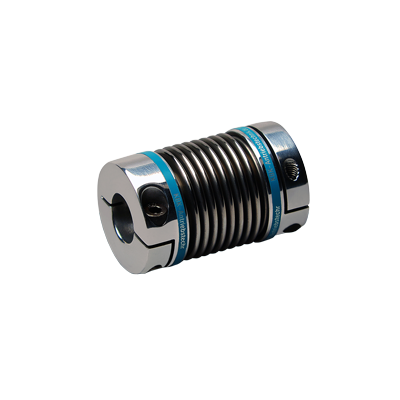

KB2 10 23 6 6 miniature metal bellow coupling, stainless steel and aluminium
HV71015221The KB2 size 10 backlash-free miniature metal bellows coupling with with clamping hub is a coupling designed for a range of precision applications. It offers torsional stiffness and allows for the compensation of shaft misalignment while exerting low restoring forces. This coupling is the perfect choice for encoders, tachometers, potentiometers, servo drives, and NC systems.
Specifications
Product description
Downloads
€39.28
Made to order
Expected shipment: 05-03-2025
More Information
Material
Stainless steel and aluminium
Length (mm)
23
Max. moment (Nm)
1
Manufacturer
KBK
Coupling size
10
Outer diameter (mm)
Ø15,5
Bore D1
Ø6mm H7
Bore D2
Ø6mm H7
Description
Key features:
- Quick mounting and easy assembly with friction-locked clamp hubs
- High torsional stiffness for enhanced precision
- Allows compensation of shaft misalignment with low restoring forces
- Suitable for encoders, tachometers, potentiometers, servo drives, and NC systems
Specifications:
- Temperature range: -30 °C to +120 °C
Materials:
- Bellows: The bellows component of the coupling is manufactured from stainless steel.
- Hubs: The hubs are crafted from lightweight and robust aluminum.
Bore specifications:
- Bore D1: Ø6mm H7
- Bore D2: Ø6mm H7
